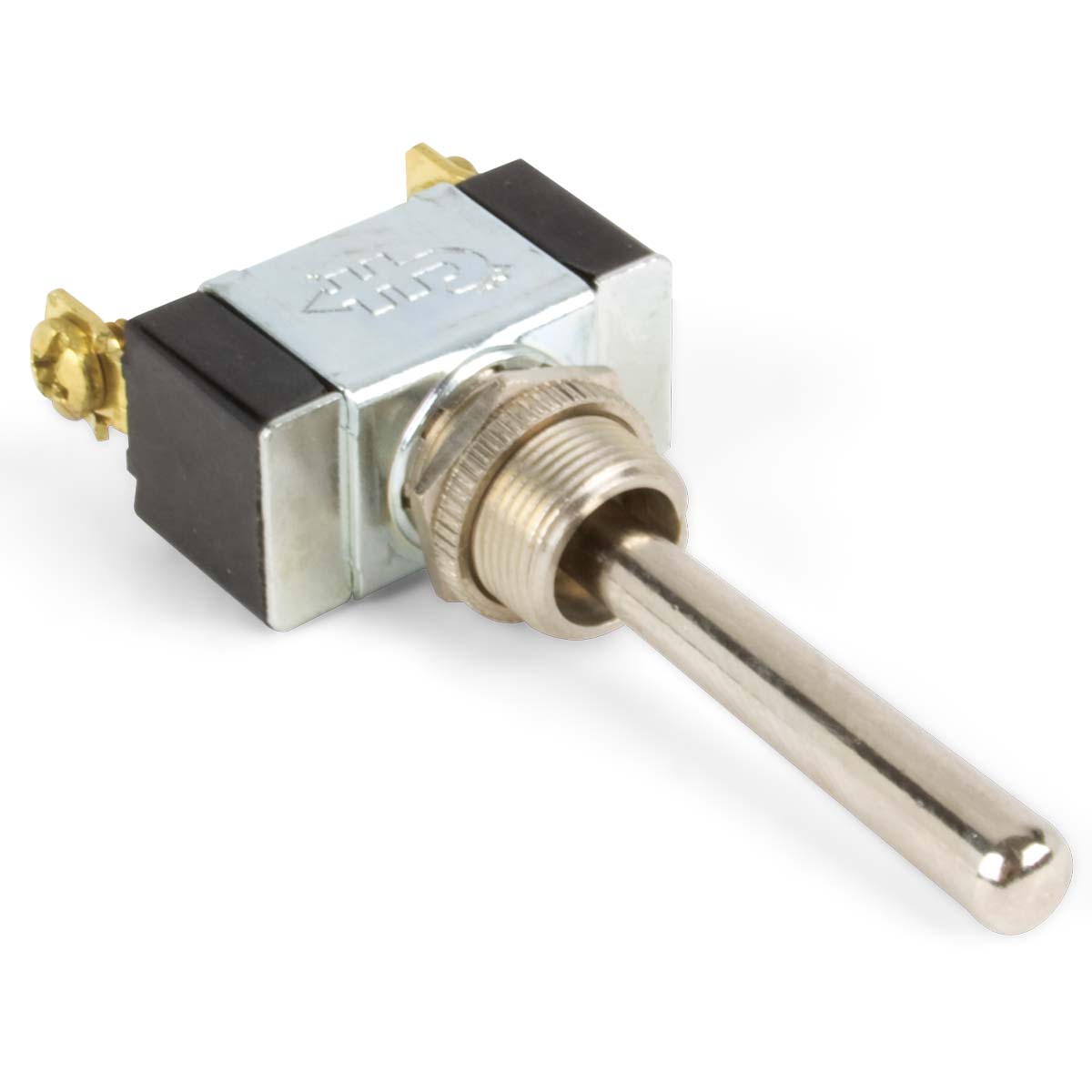

Nickel plated brass stem, handles, and mounting hardware. Plastic housing with plated steel cap. Mounting stem: 15/32" diameter with 32 tpi; 15/32" length with keyway. Handle lengths of 11/16" for standard and 1-1/2" for long. Fits panels up to 1/4" except where indicated. Silver contacts ensure dependable operation.

Nickel plated brass stem, handles, and mounting hardware. Plastic housing with plated steel cap. Mounting stem: 15/32" diameter with 32 tpi; 15/32" length with keyway. Handle lengths of 11/16" for standard and 1-1/2" for long. Fits panels up to 1/4" except where indicated. Silver contacts ensure dependable operation.

Nickel plated brass stem, handles, and mounting hardware. Plastic housing with plated steel cap. Mounting stem: 15/32" diameter with 32 tpi; 15/32" length with keyway. Handle lengths of 11/16" for standard and 1-1/2" for long. Fits panels up to 1/4" except where indicated. Silver contacts ensure dependable operation.

The product features a nickel plated brass stem, handles, and mounting hardware, along with a plastic housing that has a plated steel cap. The mounting stem has a diameter of 15/32 inches with 32 threads per inch and a length of 15/32 inches, including a keyway. It is designed to fit panels up to 1/4 inch thick, and the silver contacts ensure dependable and reliable operation. The order quantity is for 1 switch.

Specially designed for low voltage and high amperage applications. Features die cast housing and mounting stem with plated steel. Chrome plated brass handle 1-1/16" long. Bracket or stem mounting options available. Fits panel up to 3/16" thick. Contacts include heavy duty-copper & bronze and extra heavy duty-silver plated. Order quantity is 1 switch.

The product features a nickel plated brass stem, handles, and mounting hardware, along with a plastic housing that has a plated steel cap. The mounting stem has a diameter of 15/32 inches with 32 threads per inch and a length of 15/32 inches, including a keyway. It is designed to fit panels up to 1/4 inch thick, and the silver contacts ensure dependable and reliable operation. The order quantity is for 1 switch.

Nickel plated brass stem, handles, and mounting hardware. Plastic housing with plated steel cap. Mounting stem: 15/32" diameter with 32 tpi; 15/32" length with keyway. Handle lengths of 11/16" for standard and 1-1/2" for long. Fits panels up to 1/4" except where indicated. Silver contacts ensure dependable operation.

Nickel plated brass stem, handles, and mounting hardware. Plastic housing with plated steel cap. Mounting stem: 15/32" diameter with 32 tpi; 15/32" length with keyway. Handle lengths of 11/16" for standard and 1-1/2" for long. Fits panels up to 1/4" except where indicated. Silver contacts ensure dependable operation.

DPDT TOGGLE SWITCH with corrosion-resistant construction. Versatile double pole, double throw on-off-momentary on switch. Specifications include screw terminals: 6, max panel thickness: 1/4", mounting hole diameter: 0.47" (12MM), copper alloy terminals, nickel-plated brass contacts, toggle length: 5/8" (16.5MM), max amperage: 21, voltage: 14 VDC.

The product features a black plastic, plated steel cap housing and a black plastic, matte finish handle that is 1 inch long. It has a stem mount with a 15/32"-32 thread that is 1/4 inch long and includes a keyway. This switch fits panels up to 1/4 inch (25.40mm) thick and is equipped with brass terminals and silver contacts. The order quantity is for 1 switch.

Lighted switches feature a BLACK PLASTIC housing and a translucent handle, designed for either DEPENDENT or INDEPENDENT operation. Equipped with an O-RING seal for WEATHER RESISTANCE, they support a panel thickness of up to 1/8" (31.77mm). Specifications include a stem mount with 15/32"-32 thread and conservative electrical ratings: 12VDC - 25A lamp load, 35A inductive load, 125VAC - 15A, 250VAC - 10A.

The product features dependent pilot lights with a circular lens, housed in black plastic with a bezel and actuator. It includes gasket sealing in the housing, brass terminals, and silver contacts. It is designed to fit panels that are .093” to .187” thick and is individually packaged.

The product features dependent pilot lights with a circular lens, housed in black plastic with a bezel and actuator. It includes gasket sealing in the housing, brass terminals, and silver contacts. It is designed to fit panels that are .093” to .187” thick and is individually packaged.

Install switches when panel mounting isn't possible. The snap-together assembly holds three to five brackets and can be used for top of panel or under panel mounting. It features brass stabilizing rods for mounting four or five switches.

For installing two or more snap-in mounting rocker switches in a panel, the dimensions are as follows: the two sections measure 2.37" (60.20mm) wide and 2.30" (58.42mm) high, while the mounting hole for two units is 2.02" (51.31mm) wide and 1.90" (48.26mm) high. Additionally, you should add 1.03" (26.16mm) for each additional unit.

For installing two or more snap-in mounting rocker switches in a panel, the dimensions are as follows: the panel is two sections measuring 2.37" (60.20mm) wide and 2.30" (58.42mm) high. The mounting hole for two units is 2.02" (51.31mm) wide and 1.90" (48.26mm) high, with an additional 1.03" (26.16mm) required for each additional unit.

Compact round rocker switches save space on equipment control panels. Available pigtail plugs into the switch for fast installation. Amperage rating of 20A 14V DC, with dimensions including a cut out of 51/64" and panel thickness of 1/32" to 1/8". Operating temperature ranges from -13°F to 185°F.

SILICONE RUBBER SEALING BOOT provides water and dust resistance for long service life. AMPERAGE RATING of 25A 14V DC. DIMENSIONS include a cut out of 1-3/32" x 9/16" and panel thickness of 1/32" to 3/16". IP65 RATED for dust tightness and protection against water projected from a nozzle. OPERATING TEMPERATURE ranges from -13°F TO 185°F.

LARGE ROCKER designed for easy activation while wearing gloves. AMPERAGE RATING of 21A 14V DC. DIMENSIONS include a cut out of 1-29/64" x 27/32" and panel thickness ranging from 1/32" to 1/8". IP56 RATED for protection against harmful dust and strong water jets. OPERATING TEMPERATURE from -13°F to 185°F.

FOR USE WITH - 28-1900 and 28-1901.

HEAVY DUTY CONSTRUCTION with die cast body and chrome-plated handle for harsh environments. HIGH AMPERAGE rated for 50 Amps at 12VDC. COLOR-CODED FACE PLATE for easy identification. Specifications include Maximum Panel Thickness: 3mm, Panel Cut Out: 1/2" Diameter, Bushing Thread: M12 x 0.75, Operating Temperature: -4°F to 185°F, Toggle Lengths of 1-1/8" and 1-5/32".

Nickel plated brass stem, handles, and mounting hardware. Plastic housing with plated steel cap. Mounting stem: 15/32" diameter with 32 tpi; 15/32" length with keyway. Handle lengths of 11/16" for standard and 1-1/2" for long. Fits panels up to 1/4" except where indicated. Silver contacts ensure dependable operation.

Specially designed for low voltage and high amperage applications. Die cast housing and mounting stem with plated steel. Chrome plated brass handle 1-1/16" long. Bracket or stem mounting options available. Fits panel up to 3/16" thick. Contacts include heavy duty-copper & bronze and extra heavy duty-silver plated. Order quantity is 1 switch.

Specially designed for low voltage and high amperage applications. Die cast housing and mounting stem with plated steel. Chrome plated brass handle 1-1/16" long. Bracket or stem mounting with .170" holes on 1-3/4" centers, 15/32"-32 thread, 1/4" long with keyway. Fits panel up to 3/16" thick. Contacts: Heavy duty-copper & bronze; Extra heavy duty-silver plated. Order quantity is 1 switch.

Nickel plated brass stem, handles, and mounting hardware. Plastic housing with plated steel cap. Mounting stem: 15/32 diameter with 32 tpi; 15/32" length with keyway. Handle lengths of 11/16" and 1-1/2". Fits panel up to 1/4". Silver contacts assure dependable, reliable operation. Order quantity is 1 switch.
