Mechanical Connectors

Straight Tongue Mechanical Lugs for Copper Conductors Only

Offset Tongue Mechanical Lugs for Copper Conductors Only

Color-Coded Motor Pigtail Connectors

Motor Pigtail Insulating Boots

Straight Tongue Mechanical Lugs for Copper Conductors Only

Seamless construction provides maximum durability and stress resistance, while the flat bottom allows for mounting on either the tang only or the full contact surface. Additionally, direct screw pressure assures a reliable connection every time.

Wire Diameter	Stud Size	Length	Width	Height	Package Qty	Item #	Price Want to view pricing for this product? Log In or Create Login Not a Kimball Midwest Customer? Register
14 - 8 AWG	#10	0.82"	0.37"	0.38"	5	22670	Log in to view price
14 - 8 AWG, #10 Stud Staight Tongue Copper Mechanical Lug - 5 Pack Item Number: 22670 Package Weight: 0.1 lbs View Product Details Log in to Order
14 - 4 AWG	1/4"	1.12"	0.54"	0.58"	5	22671	Log in to view price
14 - 4 AWG, 1/4" Stud Straight Tongue Copper Mechanical Lug - 5 Pack Item Number: 22671 Package Weight: 0.2 lbs View Product Details Log in to Order
8 - 1/0 AWG	5/16"	1.51"	0.73"	0.76"	5	22672	Log in to view price
8 - 1/0 AWG, 5/16" Stud Straight Tongue Copper Mechanical Lug - 5 Pack Item Number: 22672 Package Weight: 0.4 lbs View Product Details Log in to Order
250 MCM	3/8"	1.96"	0.95"	1.07"	2	22673	Log in to view price
6 AWG - 250 MCM, 3/8" Stud Straight Tongue Copper Mechanical Lug - 2 Pack Item Number: 22673 Package Weight: 0.4 lbs View Product Details Log in to Order

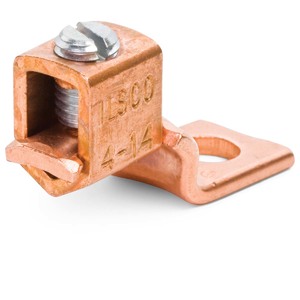

Offset Tongue Mechanical Lugs for Copper Conductors Only

Seamless construction provides maximum durability and stress resistance, while wedged wires between the arched pressure bar and V-bottom collar ensure positive contact and a firm permanent grip. Additionally, the installation process is easy.

Wire Diameter	Stud Size	Length	Width	Height	Package Qty	Item #	Price Want to view pricing for this product? Log In or Create Login Not a Kimball Midwest Customer? Register
14 - 10 AWG	#6	1"	0.28"	0.66"	5	22675	Log in to view price
14 - 10 AWG, #6 Stud Offset Tongue Copper Mechanical Lug - 5 Pack Item Number: 22675 Package Weight: 0.1 lbs View Product Details Log in to Order
14 - 6 AWG	#10	1.19"	0.44"	0.75"	5	22676	Log in to view price
14 - 6 AWG, #10 Stud Offset Tongue Copper Mechanical Lug - 5 Pack Item Number: 22676 Package Weight: 0.2 lbs View Product Details Log in to Order
14 - 4 AWG	1/4"	1.31"	0.44"	0.81"	5	22677	Log in to view price
14 - 4 AWG, 1/4" Stud Offset Tongue Copper Mechanical Lug - 5 Pack Item Number: 22677 Package Weight: 0.2 lbs View Product Details Log in to Order
8 - 2 AWG	1/4"	1.53"	0.5"	1"	5	22678	Log in to view price
8 - 2 AWG, 1/4" Stud Offset Tongue Copper Mechanical Lug - 5 Pack Item Number: 22678 Package Weight: 0.3 lbs View Product Details Log in to Order
6 - 1/0 AWG	1/4"	1.97"	0.63"	1.34"	5	22679	Log in to view price
6 - 1/0 AWG, 1/4" Stud Offset Tongue Copper Mechanical Lug - 5 Pack Item Number: 22679 Package Weight: 0.6 lbs View Product Details Log in to Order
4 - 3/0 AWG	3/8"	2.19"	0.75"	1.56"	2	22680	Log in to view price
4 - 3/0 AWG, 3/8" Stud Offset Tongue Copper Mechanical Lug - 2 Pack Item Number: 22680 Package Weight: 0.3 lbs View Product Details Log in to Order
2 - 4/0 AWG	5/16"	2.63"	1"	1.81"	2	22681	Log in to view price
2 - 4/0 AWG, 5/16" Stud Offset Tongue Copper Mechanical Lug - 2 Pack Item Number: 22681 Package Weight: 0.4 lbs View Product Details Log in to Order

Color-Coded Motor Pigtail Connectors

Provides quick and easy change out of electric motors and transformers. Fast connect/disconnect reduces downtime. Easy, error-free installation with precision male & female design for maximum current flow. Features high conductivity copper construction with corrosion resistant electro-tin plating. Temperature: 194°F (90°C), Voltage: 600 volts.

Style: Female Motor Pigtail

Wire Diameter	Body Size	Color	Package Qty	Item #	Price Want to view pricing for this product? Log In or Create Login Not a Kimball Midwest Customer? Register
8 AWG	1	Red	2	22908	Log in to view price
8 AWG, #1 Body Red Female Motor Pigtail Connector - 2 Pack Item Number: 22908 Package Weight: 0.1 lbs View Product Details Log in to Order
6 AWG	1	Blue	2	22911	Log in to view price
6 AWG, #1 Body Blue Female Motor Pigtail Connector - 2 Pack Item Number: 22911 Package Weight: 0.1 lbs View Product Details Log in to Order
6 AWG	2	Blue	2	22913	Log in to view price
6 AWG, #2 Body Blue Female Motor Pigtail Connector - 2 Pack Item Number: 22913 Package Weight: 0.1 lbs View Product Details Log in to Order
4 AWG	2	Gray	2	22915	Log in to view price
4 AWG, #2 Body Gray Female Motor Pigtail Connector - 2 Pack Item Number: 22915 Package Weight: 0.1 lbs View Product Details Log in to Order
2 AWG	2	Brown	2	22917	Log in to view price
2 AWG, #2 Body Brown Female Motor Pigtail Connector - 2 Pack Item Number: 22917 Package Weight: 0.1 lbs View Product Details Log in to Order
2 AWG	3	Brown	1	22919	Log in to view price
2 AWG, #3 Body Brown Female Motor Pigtail Connector Item Number: 22919 Package Weight: 0.2 lbs View Product Details Log in to Order
1 AWG	3	Green	1	22921	Log in to view price
1 AWG, #3 Body Green Female Motor Pigtail Connector Item Number: 22921 Package Weight: 0.2 lbs View Product Details Log in to Order
1/0 AWG	3	Pink	1	22923	Log in to view price
1/0 AWG, #3 Body Pink Female Motor Pigtail Connector Item Number: 22923 Package Weight: 0.2 lbs View Product Details Log in to Order
16 - 14 AWG	0	Blue	2	22900	Log in to view price
16 -14 AWG, #0 Body Blue Female Motor Pigtail Connector - 2 Pack Item Number: 22900 Package Weight: 0.1 lbs View Product Details Log in to Order
16 - 14 AWG	1	Blue	2	22902	Log in to view price
16 -14 AWG, #1 Body Blue Female Motor Pigtail Connector - 2 Pack Item Number: 22902 Package Weight: 0.1 lbs View Product Details Log in to Order
12 - 10 AWG	1	Yellow	2	22904	Log in to view price
12 - 10 AWG, #1 Body Yellow Female Motor Pigtail Connector - 2 Pack Item Number: 22904 Package Weight: 0.1 lbs View Product Details Log in to Order
12 - 10 AWG	2	Yellow	2	22906	Log in to view price
12 - 10 AWG, #2 Body Yellow Female Motor Pigtail Connector - 2 Pack Item Number: 22906 Package Weight: 0.2 lbs View Product Details Log in to Order

View All

Motor Pigtail Insulating Boots

Provides quick and easy change out of electric motors and transformers. Fast connect/disconnect reduces downtime. Easy, error-free installation with snap mating parts. Eliminates nuts, bolts, and loose connections. High conductivity copper construction with corrosion resistant electro-tin plating. Temperature: 194°F (90°C), Voltage: 600 volts.

Body Size	Material	Color	Package Qty	Item #	Price Want to view pricing for this product? Log In or Create Login Not a Kimball Midwest Customer? Register
0	Rubber	Black	2	22925	Log in to view price
#0 Body Size Motor Pigtail Insulating Boot - 2 Pack Item Number: 22925 Package Weight: 0.1 lbs View Product Details Log in to Order
1	Rubber	Black	2	22926	Log in to view price
#1 Body Size Motor Pigtail Insulating Boot - 2 Pack Item Number: 22926 Package Weight: 0.1 lbs View Product Details Log in to Order
2	Rubber	Black	2	22927	Log in to view price
#2 Body Size Motor Pigtail Insulating Boot - 2 Pack Item Number: 22927 Package Weight: 0.2 lbs View Product Details Log in to Order
3	Rubber	Black	2	22928	Log in to view price
#3 Body Size Motor Pigtail Insulating Boot - 2 Pack Item Number: 22928 Package Weight: 0.4 lbs View Product Details Log in to Order
