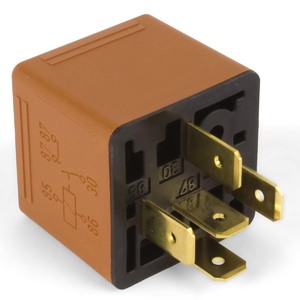

Relays reduce the length of the wire lead between equipment and the switching mechanism, minimizing resistance and ensuring more power is available. All relays have push-on type terminals. Normally Open (NO) SPST relays close the connection when current is sent, while Normally Closed (NC) SPST relays open the connection. Change-Over Relays (NO/NC) are SPDT type, switching between circuits. Rated at 30 amp for 250,000 cycles, with a 40 amp capacity for 100,000 cycles.

Relays designed to reduce wire lead length, minimizing resistance and maximizing power availability. All feature push-on type terminals. Available in Normally Open (NO), Normally Closed (NC), and Change-Over (NO/NC) configurations. Rated for 30 amp with a minimum 250,000 cycle life, and certified for 40 amp with a minimum 100,000 cycle life.

Connector for 4 or 5 pin relays.

The product features a relay connector suitable for 4 or 5 pin relays and includes a bracket mount.

The terminal for the relay connector.

MICRO ISO 280 PATTERN relays feature a compact design for efficient use in fuse boxes. Equipped with an INTERNAL RESISTOR OR DIODE to limit voltage spikes, suitable for late model vehicles, school buses, and trucks. Specifications include NO 35A @ 14VDC, NC 25A @ 14VDC, maximum continuous current of 35A, power consumption of 1.3W, and operating temperature range of -40° to 257°F.

Relays designed to reduce wire lead length, minimizing resistance and maximizing power availability. All feature push-on type terminals. Available types include Normally Open (NO) SPST, Normally Closed (NC) SPST, and Change-Over (NO/NC) SPDT. Rated for 30 amp with a minimum 250,000 cycle life, and certified for 40 amp with a minimum 100,000 cycle life.
