Designed for starter, signal, and momentary control of D.C. electrical circuits. Normally "Off" with button depressed, automatic spring return to Off. Features two position SPST switches with silver contacts for heavy duty applications up to 36 volts. Rated 35 amps at 12 volts, 20 amps at 24 volts. Die cast zinc body with rubber cover and aluminum face nut for protection against dirt and moisture. Mounting stem: 5/8-32 diameter, 21/32" long.

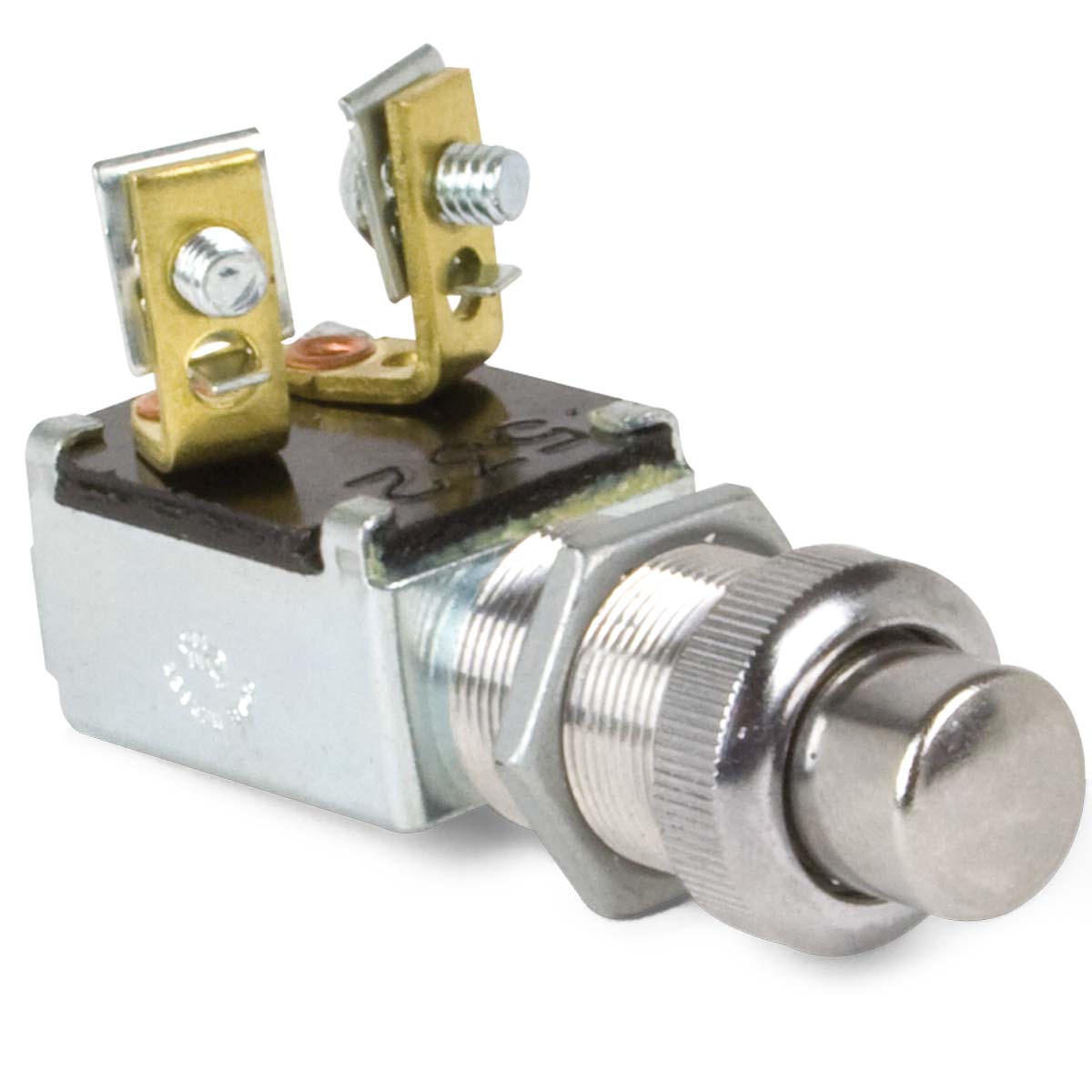

Designed for starter, signal, and momentary control of D.C. electrical circuits. Normally "Off" with button depressed, automatic spring return to Off. Two position SPST switches with silver contacts for heavy duty applications up to 36 volts. Rated 35 amps at 12 volts, 20 amps at 24 volts. Die cast zinc body with chrome plated button. Mounting stem: 5/8-32 diameter, 21/32" long.

Designed for starter, signal, and momentary control of D.C. electrical circuits. Normally "Off" with button depressed, automatic spring return to Off. Two position SPST switches with silver contacts for heavy duty applications up to 36 volts. Rated 35 amps at 12 volts, 20 amps at 24 volts. Die cast zinc body with chrome plated button. Mounting stem: 5/8-32 diameter, 21/32" long.

Designed for starter, signal, and momentary control of D.C. electrical circuits and equipment. Normally "Off" with "On" when button is depressed, featuring automatic spring return. Two position SPST switches with durable rubber cap embossed "PUSH". Cap is permanently fastened to the mounting nut, fitting momentary push switches with 5/8-32 threaded mount.

Plasticized body sealed against moisture and dirt. Moisture repellent rubber button cover snaps over special face nut. Two 18 gauge leads, 12" long. Mounts in panels up to 1/2" thick. Brass casing, stem, terminals, and mounting hardware. Mounting stem: 5/8-32 diameter, 15/16" long. MADE IN THE U.S.

Compact MINI PUSH BUTTON SWITCHES designed for easy installation on vehicles and lift trucks. Features include a drill-mountable round punch-out, optional WEATHER-RESISTANT BOOT for enhanced durability, and specifications such as SPST On-Off switch, 10A at 14V DC contact rating, 3/8-27 mounting hole, 1/4” max panel thickness, and a lifecycle of up to 50,000.

MINI PUSH BUTTON SWITCHES designed for easy installation on vehicles and lift trucks. Features include a weather-resistant boot for extended service life. Specifications include SPST On-Off switch, 10A at 14V DC contact rating, 3/8-27 mounting hole, 1/4” max panel thickness, 18 AWG wire leads at 4.5”, and a lifecycle of up to 50,000.

Designed for starter, signal, and momentary control of D.C. electrical circuits. Normally "Off" with button depressed, automatic spring return to Off position. Features two position SPST switches with silver contacts for heavy duty applications up to 36 volts. Plated steel with black plastic button, 13/16" diameter, rated 5 amps at 12 volts.

Designed for starter, signal, and momentary control of D.C. electrical circuits. Normally "Off" with button depressed, automatic spring return to Off position. Two position SPST switches rated 15 amps at 12 volts and 8 amps at 24 volts. Features copper alloy contacts, steel body, chrome plated button, and 5/8-32 diameter mounting stem, 7/8" long.
