Full port orifice on all sizes. Increased fluid flow capacity with a forged brass body and tailpiece. Features PTFE seats, stem packing, and thrust washer. Hard chrome-plated brass ball and blow-out proof stem design. Rated for 600 P.S.I. for water, oil, or gas; 150 P.S.I. for steam. Temperature range of 0°F to +250°F. Meets Federal Spec. WW-V-35B, Type II, Style 3. MADE IN THE U.S.A.

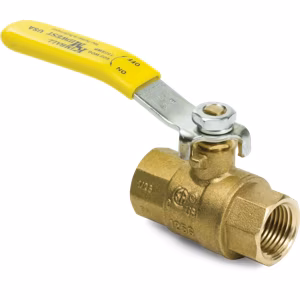

FULL PORT ORIFICE ON BOTH SIDES for maximum flow capacity. HIGH PERFORMANCE CONSTRUCTION with forged brass body, hard chrome-plated brass ball, PTFE seat and stem packing, blow-out proof stem design, and plated steel handle with synthetic coating. HIGH PRESSURE ratings of 600 P.S.I. for water, oil, or gas; 150 P.S.I. for steam. MADE IN THE U.S.A.

Full port orifice on all sizes. Increased fluid flow capacity. Forged brass body and tailpiece. PTFE seats, stem packing and thrust washer. Hard chrome-plated brass ball. Blow-out proof stem design. 600 P.S.I. for water, oil or gas; 150 P.S.I. for steam. Temperature range 0°F to +250°F. Meets Federal Spec. WW-V-35B, Type II, Style 3. Made in the U.S.A.

VENTED CONSTRUCTION allows for automatic pressure relief when closed. Features AUTOMATIC DRAIN for water and oil removal. FULL PORT design ensures maximum flow capacity. Constructed from solid forged brass with female NPT connections, PTFE seat, and high-quality Nitrile rubber Buna-N O-ring. Rated for 600 WOG maximum pressure. COMPLIES with federal specification WW-V-35, type II, style 3.

FULL PORT ORIFICE for increased flow capacity. HIGH-PRESSURE rated at 1,000 P.S.I. for water, oil, and gas; 100 P.S.I. for saturated steam. CORROSION RESISTANT 316 stainless steel body, ball, and stem. HEAVY DUTY DESIGN with reinforced PTFE seat and thrust washer. EXTREME TEMPERATURE range: −40º to 400ºF. BLOW-OUT PROOF STEM for safety. LOCKING HANDLE for security. MADE IN THE U.S.A.

FULL PORT ORIFICE for increased flow capacity. HIGH-PRESSURE rated at 1,000 P.S.I. for water, oil, and gas; 100 P.S.I. for saturated steam. CORROSION RESISTANT 316 stainless steel body, ball, and stem. HEAVY DUTY DESIGN with reinforced PTFE seat and thrust washer. EXTREME TEMPERATURE range: −20º to 450ºF. BLOW-OUT PROOF STEM for safety. LOCKING HANDLE for security.

316 STAINLESS STEEL construction ensures superior corrosion resistance for food processing and high corrosion environments. Features include FULL PORT design for maximum flow, HIGH PRESSURE rating of 1000 P.S.I. WOG, and a temperature range of -60º to 450ºF. E-LINE SERIES VALVE offers increased economy and high performance with a blow-out proof stem design and 90° LOCKING HANDLE for safe operation.

3 PIECE BODY for easy servicing. FULL PORT DESIGN for increased fluid flow capacity. HIGH PRESSURE rated at 1000 P.S.I. for water, oil, and gas; 150 W.S.P. Constructed from CORROSION RESISTANT 316 STAINLESS STEEL. HIGH PERFORMANCE with PTFE seat, blow-out proof stem, and locking handle. TEMPERATURE RANGE from -60°F to 450°F. Conforms to MSS SP-110 and meets FED. SPEC WWV-35-C type II.

FULL PORT ORIFICE for increased flow capacity with no restriction in flow. HIGH PRESSURE 2-PIECE DESIGN rated 2,000 P.S.I. WOG. REINFORCED PTFE SEAT for reliability. NPT THREADED ENDS for easy connection. STAINLESS STEEL HANDLE for comfort. Temperature Range: 14°F to 302°F. Working Pressure: 2,000 P.S.I. (138 Bar). Suitable for Water, Oil, and Gas.

The product features corrosion resistant type 316 stainless steel, with a stainless steel body, ball, and stem, reinforced PTFE seats, and a locking handle style. It is rated for 1000 P.S.I. for water, oil, or gas, and 250 P.S.I. for saturated steam.

PUSH TO CONNECT SYSTEM for fast, reliable installations to copper, CPVC, and PEX tubing without tools or heat. REMOVABLE & MISTAKE-FREE joints can be rotated before pressurization. COST EFFECTIVE, reducing labor costs. CORROSION RESISTANT forged DZR brass approved for direct bury. POTABLE WATER COMPLIANT, lead-free for water applications. HIGH-FLOW DESIGN maintains flow volume up to 200 P.S.I. at 200°F. INSTANT FLOW CONTROL with PTFE seals. Certified by ASSE 1061, NSF/ANSI 61, and others.

PTFE seats and seals provide resistance to chemical corrosion, while the valves feature a 1/4-1" forged, chrome plated brass ball and a 1-1/4-2" cast bronze construction. They are rated for 600 P.S.I. for water, oil, or gas, and 150 P.S.I. for steam, with a temperature range of 0°F to +350°F.

PTFE seats and seals provide resistance to chemical corrosion, while the valves feature a 1/4-1" forged, chrome plated brass ball and a 1-1/4-2" cast bronze construction. They are rated for 600 P.S.I. for water, oil, or gas, and 150 P.S.I. for steam, with a temperature range of 0°F to +350°F.

COPPER SWEAT construction for unthreaded copper pipe and fittings. Features 2 piece FULL PORT design for maximum flow. HIGH PERFORMANCE with solid forged brass body, PTFE seat, and synthetic coated Zinc plated steel handle. Rated for 600 WOG and 150 SWP. 90° LOCKING HANDLE for safe operation. COMPLIANT with federal specs and CSA certified.

FORGED LEAD FREE BRASS construction conforms to regulations for potable water use. FULL PORT design allows maximum flow capacity. HIGH PERFORMANCE CONSTRUCTION features a forged lead free brass body, 304 stainless steel stem and ball, PTFE seat, viton o-ring, and zinc plated steel handle. HIGH PRESSURE rated at 600 P.S.I. for water, oil, or gas; 150 P.S.I. for steam. CSA certified lead free, conforms to CGA3.16 and ASME B16.33 for gas service. MADE IN THE U.S.A.

1-PIECE STEEL BALL VALVES with higher rated operating pressure than standard brass ball valves. Available in sizes 1/4" - 1" at 2,000 PSI WOG and 1-1/4" - 2" at 1,500 PSI WOG. Features REINFORCED PTFE SEAT for reliability, extreme temperature range of −60º to 450ºF, NPT THREADED ENDS, BLOW-OUT PROOF STEM, and STAINLESS STEEL HANDLE for comfort and easy identification.

PTFE seats and seals provide resistance to chemical corrosion, while the brass extruded body is chrome plated. The chrome plated brass ball enhances durability, and the assembly is rated for 300 P.S.I. with a temperature range of 0°F to +250°F.

General purpose K-LOK BALL VALVES provide precise control of fluid flow with reliable K-Lok fittings. Features include bi-directional flow, secure shutoff, and low operating torque. Constructed from corrosion-resistant stainless steel, these valves have a blow-out proof stem for durability. Available in tube and female NPT styles for versatile connections. Compact design with high flow capacity. Locking handles secure valves in ON or OFF positions. Suitable for instrumentation and equipment in various industries. Specifications include a pressure rating of 2,000 P.S.I. at 100°F and a maximum temperature rating of 400°F (204°C).

General purpose K-LOK BALL VALVES offer precise control of fluid flow with reliable K-Lok fittings. Features include bi-directional flow, secure shutoff, and low operating torque. Constructed from corrosion-resistant stainless steel, these valves have a blow-out proof stem for durability. Available in tube and NPT styles for versatile connections. Compact design with high flow capacity. Locking handles secure valves in ON or OFF positions. Suitable for instrumentation and equipment in various industries. Specifications include a pressure rating of 2,000 P.S.I. at 100°F and a maximum temperature rating of 400°F (204°C).

General purpose K-Lok Ball Valves offer precise control of fluid flow with reliable K-Lok fittings. Durable design provides bi-directional flow, secure shut-off, and low operating torque. Available in Tube and NPT styles for direct connections. Compact size with high flow capacity. Suitable for applications in chemical, petroleum, food processing, and more. Temperature range: -15 °F to 400 °F.

PTFE seats and seals provide resistance to chemical corrosion, while the brass extruded body is chrome plated. The chrome plated brass ball enhances durability, and the assembly is rated for 300 P.S.I. with a temperature range of 0°F to +250°F.

PTFE seats and seals provide resistance to chemical corrosion, while the brass extruded body is chrome plated. The valve features a chrome plated brass ball and is rated for 300 P.S.I., with a temperature range of 0°F to +250°F.

Chrome plated solid brass construction ensures high corrosion resistance and long service life. Features NPT THREADED ENDS (MxF) for quick in-line installation. PTFE BALL SEATS enhance chemical and corrosion resistance. Maximum operating temperature of 356°F at 142 PSI and maximum working pressure of 450 PSI.

The retrofit easily replaces standard non-locking handles and features a pad lockable design to prevent tampering by allowing a padlock to be installed through the handle. It has high visibility due to a yellow plastic cover over the zinc plated handle and is made in the U.S.A.
