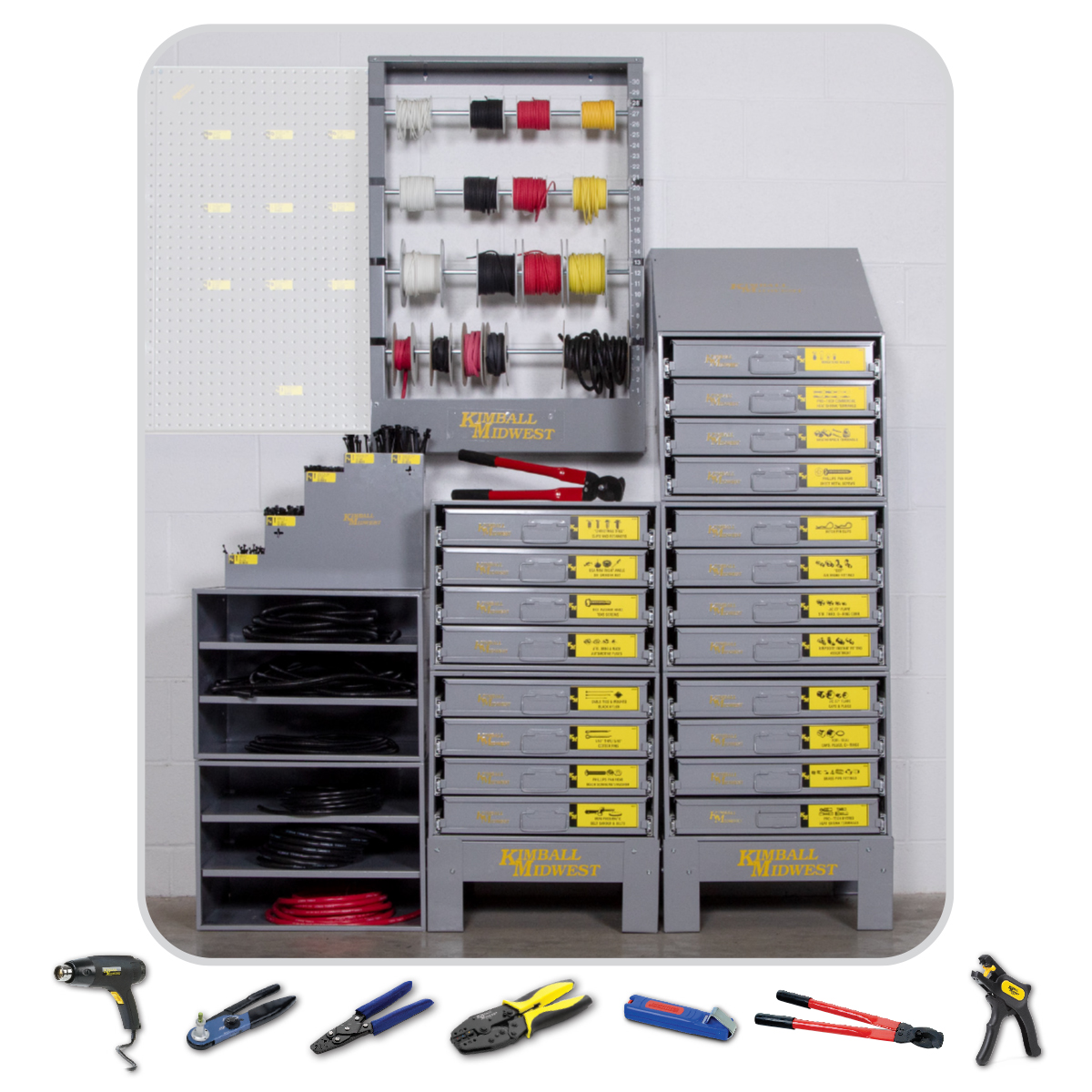

Extra Large Electrical Shop Setup

This Shop Setup contains 2 spools of wire, 2 rolls of Heat Shrink Tubing, 3 reels of battery cable, 22 Assortments, and all related storage equipment and tools.

Assortments:

• 40-221 - Nylon Terminal Assortment - 430 Pieces
• 40-230-4 - 22-18 AWG Pro-Tech™ Nytrex Terminal Assortment - 95 Pieces
• 40-230-5 - 16-14 Pro-Tech™ Nytrex Terminal Assortment - 135 Pieces
• 40-230-6 - 12-10 Pro-Tech™ Nytrex Terminal Assortment - 110 Pieces
• 40-233 - Weatherpack Automotive Terminal Assortment - 131 Pieces
• 40-233-4 - Deutsch DT Terminal Assortment - 171 Pieces
• 40-233-6 - General Motors Metripack 280 Terminal Assortment - 109 Pieces
• 40-236-1- Color Coded Wire Connector Assortment - 215 Pieces
• 40-258 - SXL Cross-Link Wire Assortment - 6 Pieces
• 40-260-8 - Black Nylon Cable Tie Assortment - 400 Pieces
• 40-261-4 - 8" Colored Nylon Cable Tie Assortment - 600 Pieces
• 40-265-1 - 3/4" Band Insulated Steel Clamp Assortment - 84 Pieces
• 40-265-2 - 1/2" Band Insulated Steel Clamp Assortment - 95 Pieces
• 40-267-1 - Rubber Grommet Assortment - 230 Pieces
• 40-267-7 - Convoluted Split Loom Assortment - 3 Pieces
• 40-268-0 - Black & Red Dual Wall Heat Shrink Tubing Assortment - 48 Pieces
• 40-270-2 - Kim-Tech Battery Terminal Assortment - 80 Pieces
• 40-272 - Heavy-Duty Copper Lugs and Connectors Assortment - 81 Pieces
• 40-282 - ATO, Mini & Maxi Fuse Assortment - 105 Pieces
• 40-284 Glass Tube Fuse Assortment - 225 Pieces
• 40-284-1 - Fuse and Fuse Holder Assortment - 27 Pieces
• 40-288 - 12 Volt Miniature Lamp Assortment - 105 Pieces

Wire:

• 26-328 - 12 Gauge Cross-Link Primary Wire Black - 100 Feet
• 26-388 - 18 Gauge Cross-Link Primary Wire Black - 100 Feet
• Superior resistance to weather, abrasion, temperature extremes and chemicals.
• Extreme durability extends life, reduces replacement.
• OEM on heavy duty equipment and vehicles.
• Premium stranded copper conductors.
• Temperature range: -60° to 350°F.
• Conforms to SAE specification J1128 and to ATA specifications.

Battery Cable:

• 26-408 - 4 Gauge Battery / Starter Cable Black - 25 Feet
• 26-415 - 1/0 Gauge Battery / Starter Cable Red - 25 Feet
• 26-416 - 2/0 Gauge Battery / Starter Cable Black - 25 Feet
• EXTREME DURABILITY - Resists abrasion, oil, grease, water and more.
• HEAVY-DUTY CONSTRUCTION - Stranded copper conductor - soft annealed for flexibility with all weather insulation for long service life.
• WIDE TEMPERATURE RANGE - Withstands temperatures from -40° to 220°F.
• MADE IN THE U.S.A.

Heat Shrink Tubing:

• 26-1982 - 1/4" Dual-Wall Heat-Shrink Tubing - 25 Feet
• 26-1984 - 1/2" Dual-Wall Heat-Shrink Tubing - 25 Feet
• DUAL-WALL HEAT SHRINK TUBING - Dual-wall tubing provides a secure seal while absorbing stress and vibration.
• THERMA-FLOW SEALANT - Meltable inner wall sealant bonds the tubing to the wire or cable for a weatherproof seal and resists vibration, flexing and pulling tubing away from the cable. Provides excellent strain relief and protection.
• DURABLE - Flame resistant, weatherproof and resists hydraulic fluid, oil and chemicals.
• WIDE RANGE APPLICATION - The 3:1 shrink ratio covers a wide range of wire and cable sizes.
• DIELECTRIC STRENGTH - 600 volts/mil.

Tools:

• 22-176 - Weatherpack / Metripack Terminal & Seal Crimper - Qty 1
• CRIMPS TERMINALS & SEALS - Crimps the most popular Sealed Metripack 150 and 280 terminals as well as Weather Pack terminals and seals with one tool.
• UNIQUE PARALLEL JAW DESIGN - Crimper design eliminates the problem of terminals "rocking" out of position and keeps the tool compact in size.
• PRECISION MACHINED & COST EFFECTIVE - Provides an effective crimp without the higher cost of a compound leverage ratchet mechanism.
• SOFT CUSHIONED GRIPS - Comfort grips are easy on hands and provide the user with good ergonomic handling.

• 22-700 - Deutsch Terminal Crimp Tool - Qty 1
• SUPERIOR QUALITY - Easily creates production-quality crimps.
• WIDE RANGE - Adjustable design crimps all Deutsch solid contacts from 20 to 12 gauge.
• SECURE CRIMPING - Eight-indent crimping provides a secure connection to the wire.
• RATCHETING DESIGN - Ratcheting mechanism provides a perfect crimp every time. The handles will not release until the crimp cycle is fully completed, helping eliminate under- or over-crimped contacts.
• APPLICATIONS - Deutsch terminals are frequently used on trucks, motorcycles, off road construction, heavy duty equipment, and more.

• 22-815 - Crimp-Master Ratcheting Insulated Terminal Crimp Tool - Qty 1
• SUPERIOR CRIMP QUALITY - Duplicates factory crimps on nylon and vinyl insulated terminals.
• RATCHET MECHANISM - Ratchet action design assures a complete crimp cycle is achieved before the tool opens.
• DOUBLE CRIMPS - Produces an electrical crimp and insulation grip crimp in one cycle on nylon terminals with funnel entry insulation grip sleeves.
• POWERFUL 4 RATCHET PAWL DESIGN - Provides increased leverage for faster and easier crimping.
• COMFORTABLE CUSHION grip HANDLES - Large cushion grip handles provide maximum comfort for extended use.
• 3 CRIMP STATIONS - Individual crimp stations for 22-18, 16- 14 & 12-10 terminals provide high crimp integrity for superior installed strength and long term reliability.
• ADJUSTABLE TENSION CONTROL - Allows crimp adjustment for different terminal construction (preset for standard nylon and vinyl terminals).
• PROFESSIONAL QUALITY - Heavy duty lever arms, protective side panels, 4 pawl design, removable crimp jaws, cushion grip handles and more make this a true professional quality tool.
• SAFETY RELEASE LEVER - Built-in release lever allows opening the tool before completion of the crimp cycle if needed.

• 22-819 - StripGun Automatic Wire Stripper - Qty 1
• AUTOMATIC ACTION - Instantly strips wire with the pull of the handle.
• ADJUSTABLE - Easily adjustable strip length allows the user to quickly select the ideal amount of wire insulation removal.
• ERGONOMIC DESIGN - Comfortable, lightweight "pistol grip" design reduces user fatigue. Molded finger contours and anti-slip palm grip provide easy operation.
• WIDE WIRE GAUGE CAPABILITY - Accepts \#10 thru \#24 AWG solid and stranded wire for stripping and \#12 thru \#24 AWG for cutting.
• BUILT IN WIRE CUTTER - Trigger-actuated design provides fast and easy cutting.
• LONG BLADE LIFE - Hardened steel blades provide long service life.
• TOUGH AND DURABLE - Fiberglass reinforced polymer construction is strong and lightweight.
• EASY TO STORE AND CARRY - The pistol grip can be locked in the retracted position to make the stripper more compact for storage and carrying.

• 26-954 -Professional LED Indicating Heat Gun - Qty 1
• PROFESSIONAL HEAT GUN - The ideal maintenance tool for sealing heat shrink terminals, removing decals and completing many other maintenance tasks.
• SEQUENTIAL LED DISPLAY - Quickly determine the output temperature with the easy to read LED display - the more LEDs illuminated, the higher the temperature.
• RETRACTABLE HEAT GUARD - Ideal for quick storage - Extend the guard, throw it in a tool bag or box and go, no downtime waiting for the tool to cool.
• VARIABLE INTENSITY - High output 1200W heater adjusts infinitely from 120°F to 1000°F.
• DUAL SPEED MOTOR - Ensures proper air-flow rate for a wide range of applications.
• HAND HELD OR BENCH TOP USE - The flatback allows the tool to stand vertically for hands free operation making it ideal for sealing heat shrink terminals. The durable high impact body provides a secure non-slip grip for increased durability.
• VERSATILE - Ideal for heat shrink tubing, bending plastics, fast curing adhesives, drying parts, stripping paint, thawing frozen pipes and locks, and more.
• SPECIFICATIONS: ETL Listed; 120V, 1200W Heater; 6.5 ft. 2 wire cord

• 27-900 - Cable Cutters - Qty 1
• For cutting copper or aluminum cable.
• Precision blades give clean cut, minimum distortion.
• Contoured grips provide safe and easy operation.
• Heavy-duty construction for lasting durability.

• 27-903 - Cable Strippers - Qty 1
• Unbelievably fast, safe and easy.
• Strips cable up to 4/0 - Perfect results every time.
• Adjustable blade depth for various insulation thicknesses.

Storage Equipment:

• 628R - Space Saving Depth Large Drawer Roller Rack - Qty 5
• SPACE-SAVING DEPTH - At only 12-1/2" deep, the rack installs easily in confined work areas, and lines up better with standard 40 hole bins to provide a seamless look to installations.
  NOTE: The 644R rack is 16-3/4" deep.
• BALL BEARING SLIDES - Provide smooth extension and
  retraction, and long service life.
• BUILT-IN POSITIVE STOPS - Hold the drawer in place to help
  prevent accidental sliding forward. A firm (but not difficult) pull will allow the drawer to be moved forward easily.
• MADE IN THE U.S.A.

• 635 - Tubing and Cable Rack - Qty 1
• 14-3/4 High x 20-7/16 Wide x 16-3/4 Deep

• 680 - 20 Compartment Drawer - Qty. 1
• Large Drawer
• For use in 644R, 645, 613 or 613R drawer racks.

• 685 - Adjustable Drawer - Qty. 1
• Large Drawer
• For use in 644R, 645, 613 or 613R drawer racks.

• 729 - Space Saving Depth Rack Base Stand - Qty 1
• Use with 628R racks.
• 20-5/8 wide x 12-5/8 deep x 12" high

• 762 - Angled Rack Topper - Qty 2
• KEEPS SHOP AREAS NEAT & ORGANIZED - Angled topper installs on top of the rack to prevent clutter from accumulating.
• EASY TO INSTALL - The three-piece design is easy to install quickly.
  The ends of the topper are separate pieces to allow easy access to the fasteners attaching the topper to the drawer rack.
  After the topper is secured to the rack, the ends install quickly with three screws per side for a finished appearance.
• DURABLE CONSTRUCTION - Powder-coated steel construction is tough and durable for long service life.
• USE WITH 628R DRAWER RACK
• MADE IN THE U.S.A.
