Nylon Terminal Assortment

Nylon Terminal Assortment

Price

Want to view pricing for this product?
Log In or Create Login

Not a Kimball Midwest Customer?
Register

Package Quantity: 1

Package Weight: 9.1 lbs

Item: 40221

  • Outstanding durability, temperature resistance and dielectric strength from Enduralon™ Nylon Insulation.
  • Wires insert smoothly without hang-up into special funnel shaped barrels for fast and easy installation.
  • Insulock™ grip sleeves built into the terminal barrel allows a second crimp that locks the barrel onto the wire insulation to prevent wire pull-out failures.
  • Widest operating temperature range: -40°F to 250°F continuous; up to 350°F intermittent.
  • 600 volt rating on ring, hook and spade terminals.

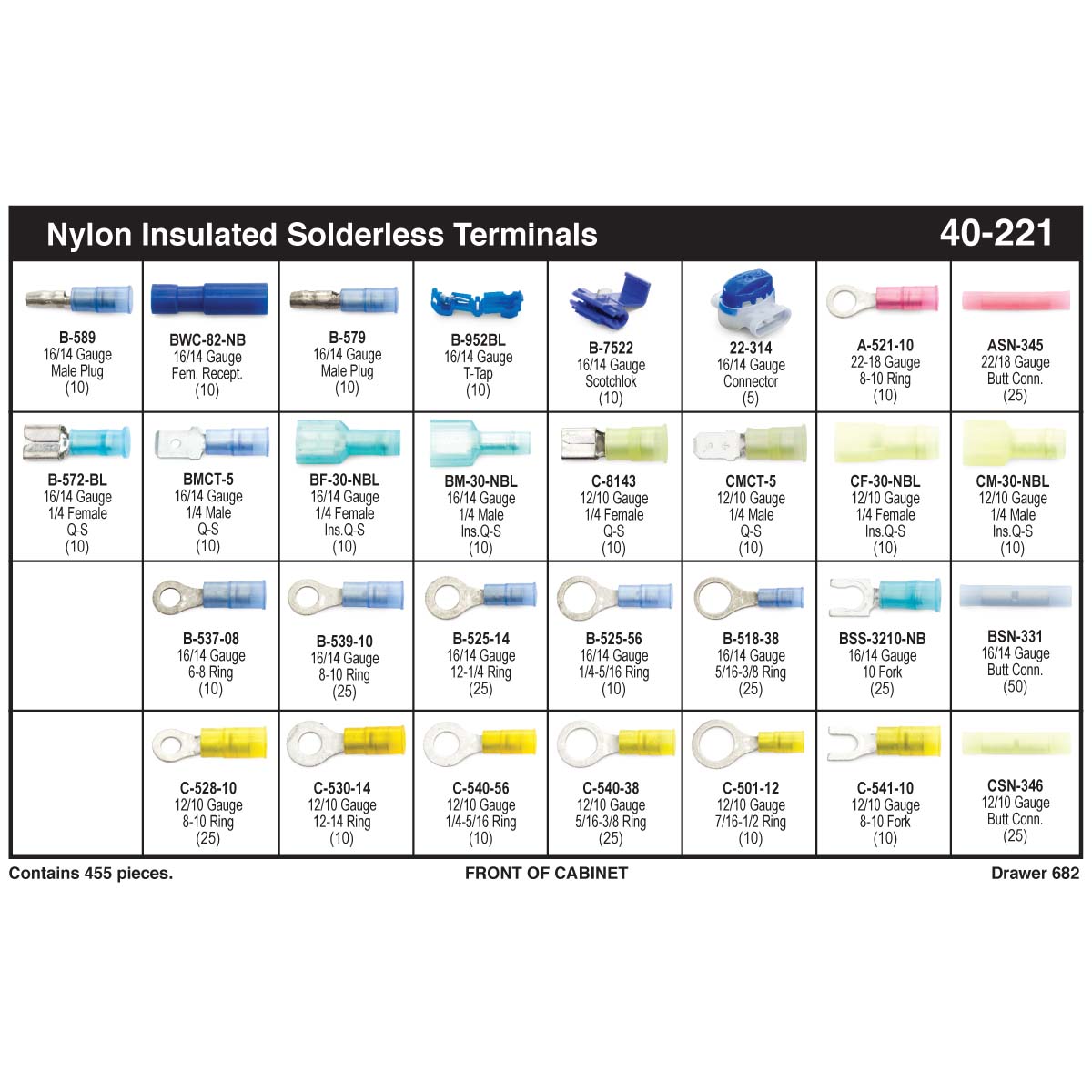

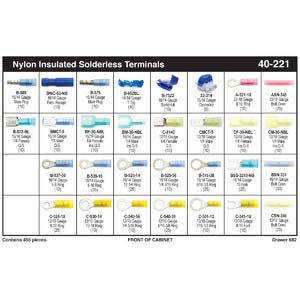

Kit Contains:

  • A-521-10 - Enduralon™ #8 - 10 Ring Terminal 22 - 18 AWG - Qty. 10
  • ASN-345 - Enduralon™ Butt Connector 22 - 18 AWG - Qty. 25
  • B-537-08 - Enduralon™ #6 - 8 Ring Terminal 16 - 14 AWG - Qty. 10
  • B-539-10 - Enduralon™ #8 - 10 Ring Terminal 16 - 14 AWG - Qty. 25
  • B-525-14 - Enduralon™ #12 - 1/4" Ring Terminal 16 - 14 AWG - Qty. 25
  • B-525-56 - Enduralon™ 1/4" - 5/16" Ring Terminal 16 - 14 AWG - Qty. 10
  • B-518-38 - Enduralon™ 5/16" - 3/8" Ring Terminal 16 - 14 AWG - Qty. 25
  • BSS-3210-NB - Enduralon™ #10 Snap Spade Terminal 16 - 14 AWG - Qty. 10
  • B-579 - Enduralon™ Male .180 Snap "Bullet" Plug 16 - 14 AWG - Qty. 10
  • B-589 - Enduralon™ Male .156 Snap "Bullet" Plug 16 - 14 AWG - Qty. 10
  • BWC-82-NB - Enduralon™ Female .156 Snap "Bullet" Receptacle 16 - 14 AWG - Qty. 10
  • BF-30-NBL - Enduralon™ Insulated Female 1/4" Quick Slide Terminal 16 - 14 AWG - Qty. 10
  • BM-30-NBL - Enduralon™ Insulated Male 1/4" Quick Slide Terminal 16 - 14 AWG - Qty. 10
  • B-572-BL - Enduralon™ Standard Female 1/4" Quick Slide Terminal 16 - 14 AWG - Qty. 10
  • BMCT-5 - Enduralon™ Male 1/4" Quick Slide Terminal 16 - 14 AWG - Qty. 10
  • BSN-331 - Enduralon™ Butt Connector 16 - 14 AWG - Qty. 50
  • C-528-10 - Enduralon™ #8 - 10 Ring Terminal 12 - 10 AWG - Qty. 25
  • C-530-14 - Enduralon™ #12 - 1/4"Ring Terminal 12 - 10 AWG - Qty. 10
  • C-540-56 - Enduralon™ 1/4" - 5/16" Ring Terminal 12 - 10 AWG - Qty. 10
  • C-540-38 - Enduralon™ 5/16" - 3/8" Ring Terminal 12 - 10 AWG - Qty. 25
  • C-501-12 - Enduralon™ 7/16" - 1/2" Ring Terminal 12 - 10 AWG - Qty. 10
  • C-541-10 - Enduralon™ #8 - 10 Fork Terminal 12 - 10 AWG - Qty. 10
  • CSN-346 - Enduralon™ Butt Connector 12 - 10 AWG - Qty. 25
Brand: Kimball Midwest Approved Vendor
Finish: Electro-Tin Plated
Installation: Crimp
Material: Electrolytic Copper Contacts
Maximum Operating Temperature: 250 °F
Minimum Operating Temperature: -40 °F
Number of Pieces: 430
Style: Insulated
Subcategory: Nylon Terminals
Voltage: 600V
Wire Diameter: 22 - 10 AWG


WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
