FFE Series Hydraulic Couplings

Flat Face Hydraulic Coupler Assemblies - FFE Series

Flat Face Hydraulic Female Couplers - FFE Series

Flat Face Pressure-Connect Female Nipples - FFE Series

Flat Face Hydraulic Female Nipples - FFE Series

Flat Face Hydraulic Coupler Assemblies - FFE Series

NON-SPILL HYDRAULIC COUPLERS designed for minimum air inclusion during connection and fluid spill during disconnect. ANTI-BLOWOUT SEAL prevents damage in severe service use and reduces failure under residual system pressure (250 P.S.I. max). HARDENED NIPPLES & SLEEVES resist wear and shock. ISO 16028 INTERCHANGE compatible with Parker FEM series and Aeroquip FD89. FEMALE O-RING BOSS THREAD ideal for skid steer loaders and agricultural equipment. MADE IN THE U.S.A.

Body Size	Thread Size	Thread Type	Air Consumption	Maximum Pressure	Package Qty	Item #	Price Want to view pricing for this product? Log In or Create Login Not a Kimball Midwest Customer? Register

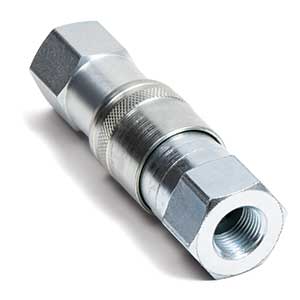

1/2"	1/2"-14	NPT	12 SCFM	4,000 P.S.I.	1	521474	Log in to view price
1/2" x 1/2"-14 Flat Face Hydraulic Coupler Assembly - FFE Series Item #: 521474 Package Weight: 1.6 lbs View Product Details Log in to Order
1/2"	3/4"-14	NPT	12 SCFM	4,000 P.S.I.	1	521128	Log in to view price
1/2" x 3/4"-14 Flat Face Hydraulic Coupler Assembly - FFE Series Item #: 521128 Package Weight: 1.5 lbs View Product Details Log in to Order
1/2"	7/8"-14	ORT	12 SCFM	4,000 P.S.I.	1	521442	Log in to view price
1/2" x 5/8" Flat Face Hydraulic Coupler Assembly - FFE Series Item #: 521442 Package Weight: 1.6 lbs View Product Details Log in to Order
1/2"	1-1/16"-12	ORT	12 SCFM	4,000 P.S.I.	1	521445	Log in to view price
1/2" x 3/4" Flat Face Hydraulic Coupler Assembly - FFE Series Item #: 521445 Package Weight: 1.7 lbs View Product Details Log in to Order

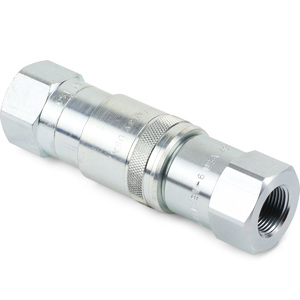

3/4"	3/4"-14	NPT	26 SCFM	4,000 P.S.I.	1	521131	Log in to view price
3/4" x 3/4"-14 Flat Face Hydraulic Coupler Assembly - FFE Series Item #: 521131 Package Weight: 2.8 lbs View Product Details Log in to Order
3/4"	1-5/16"-12	ORT	26 SCFM	4,000 P.S.I.	1	521448	Log in to view price
3/4" x 1" Flat Face Hydraulic Coupler Assembly - FFE Series Item #: 521448 Package Weight: 2.6 lbs View Product Details Log in to Order

Flat Face Hydraulic Female Couplers - FFE Series

Body Size	Thread Size	Thread Type	Air Consumption	Maximum Pressure	Package Qty	Item #	Price Want to view pricing for this product? Log In or Create Login Not a Kimball Midwest Customer? Register

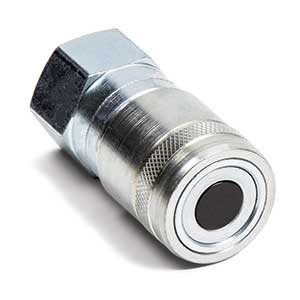

1/2"	1/2"-14	NPT	12 SCFM	4,000 P.S.I.	1	521472	Log in to view price
1/2" x 1/2"-14 Flat Face Hydraulic Female Coupler - FFE Series Item #: 521472 Package Weight: 1 lbs View Product Details Log in to Order
1/2"	3/4"-14	NPT	12 SCFM	4,000 P.S.I.	1	521126	Log in to view price
1/2" x 3/4"-14 Flat Face Hydraulic Female Coupler - FFE Series Item #: 521126 Package Weight: 0.9 lbs View Product Details Log in to Order
1/2"	7/8"-14	ORT	12 SCFM	4,000 P.S.I.	1	521440	Log in to view price
1/2" x 5/8" Flat Face Hydraulic Female Coupler - FFE Series Item #: 521440 Package Weight: 1 lbs View Product Details Log in to Order

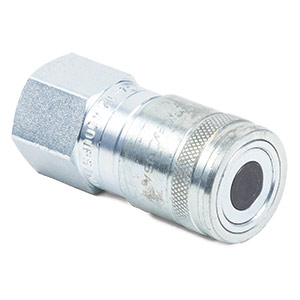

1/2"	1-1/16"-12	ORT	12 SCFM	4,000 P.S.I.	1	521443	Log in to view price
1/2" x 3/4" Flat Face Hydraulic Female Coupler - FFE Series Item #: 521443 Package Weight: 1 lbs View Product Details Log in to Order
3/4"	3/4"-14	NPT	26 SCFM	4,000 P.S.I.	1	521129	Log in to view price
3/4" x 3/4"-14 Flat Face Hydraulic Female Coupler - FFE Series Item #: 521129 Package Weight: 1.7 lbs View Product Details Log in to Order
3/4"	1-5/16"-12	ORT	26 SCFM	4,000 P.S.I.	1	521446	Log in to view price
3/4" x 1" Flat Face Hydraulic Female Coupler - FFE Series Item #: 521446 Package Weight: 1.7 lbs View Product Details Log in to Order

Flat Face Pressure-Connect Female Nipples - FFE Series

NON-SPILL HYDRAULIC COUPLERS feature a flush face design for minimal air inclusion and fluid spill. ANTI-BLOWOUT SEAL prevents damage under residual pressure (250 P.S.I. max). HARDENED NIPPLES & SLEEVES resist wear and shock. ISO 16028 INTERCHANGE compatibility with Parker FEM series and others. CONNECT UNDER PRESSURE allows one-hand connection, ideal for hydraulic attachments. MADE IN THE U.S.A.

Body Size	Thread Size	Thread Type	Air Consumption	Maximum Pressure	Package Qty	Item #	Price Want to view pricing for this product? Log In or Create Login Not a Kimball Midwest Customer? Register
1/2"	1/2"-14	NPT	12 SCFM	4,000 P.S.I.	1	521475	Log in to view price
1/2" x 1/2"-14 Flat Face Pressure-Connect Hydraulic Female Nipple - FFE Series Item #: 521475 Package Weight: 0.6 lbs View Product Details Log in to Order

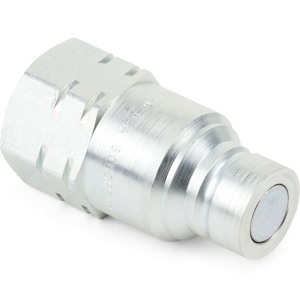

Flat Face Hydraulic Female Nipples - FFE Series

Body Size	Thread Size	Thread Type	Air Consumption	Maximum Pressure	Package Qty	Item #	Price Want to view pricing for this product? Log In or Create Login Not a Kimball Midwest Customer? Register
1/2"	1/2"-14	NPT	12 SCFM	4,000 P.S.I.	1	521473	Log in to view price
1/2" x 1/2"-14 Flat Face Hydraulic Female Nipple - FFE Series Item #: 521473 Package Weight: 0.6 lbs View Product Details Log in to Order
1/2"	3/4"-14	NPT	12 SCFM	4,000 P.S.I.	1	521127	Log in to view price
1/2" x 3/4"-14 Flat Face Hydraulic Female Nipple - FFE Series Item #: 521127 Package Weight: 0.6 lbs View Product Details Log in to Order
1/2"	7/8"-14	ORT	12 SCFM	4,000 P.S.I.	1	521441	Log in to view price
1/2" x 5/8" Flat Face Hydraulic Female Nipple - FFE Series Item #: 521441 Package Weight: 0.6 lbs View Product Details Log in to Order
1/2"	1-1/16"-12	ORT	12 SCFM	4,000 P.S.I.	1	521444	Log in to view price
1/2" x 3/4" Flat Face Hydraulic Female Nipple - FFE Series Item #: 521444 Package Weight: 0.7 lbs View Product Details Log in to Order
3/4"	3/4"-14	NPT	26 SCFM	4,000 P.S.I.	1	521130	Log in to view price
3/4" x 3/4"-14 Flat Face Hydraulic Female Nipple - FFE Series Item #: 521130 Package Weight: 1.1 lbs View Product Details Log in to Order
3/4"	1-5/16"-12	ORT	26 SCFM	4,000 P.S.I.	1	521447	Log in to view price
3/4" x 1" Flat Face Hydraulic Female Nipple - FFE Series Item #: 521447 Package Weight: 0.9 lbs View Product Details Log in to Order
