SolderConn Self-Soldering Terminal Assortment

Price

Want to view pricing for this product?
Log In or Create Login

Not a Kimball Midwest Customer?
Register

Package Quantity: 1

Package Weight: 8.8 lbs

Item: 40232

  • In one step the connection is soldered, completely insulated and sealed against corrosion.
  • The proven reliability of real soldered connections.
  • The durability of Therma-Flow Sealant that melts on installation to seal openings and lock out corrosion.
  • 2200 P.S.I. soldered tensile strength provides long term strain and vibration resistance. Pullout strength exceeds 150 lbs. per terminal.
  • Temperature Range: -65°F to 275°F
    Dielectric Strength: 15,000 Volts

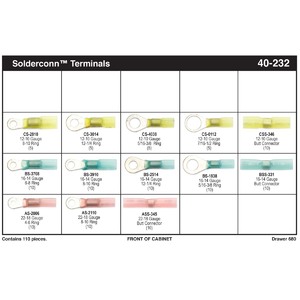

Kit Contains:

  • AS-2006 - SolderConn Self-Soldering #4-6 Ring Terminal 22 - 18 AWG - Qty. 10
  • AS-2110 - SolderConn Self-Soldering #8-10 Ring Terminal 22 - 18 AWG - Qty. 10
  • ASS-345 - SolderConn Self-Soldering Butt Connector 22 - 18 AWG - Qty. 10
  • BS-3708 - SolderConn Self-Soldering #6-8 Ring Terminal 16 - 14 AWG - Qty. 10
  • BS-3910 - SolderConn Self-Soldering #8-10 Ring Terminal 16 - 14 AWG - Qty. 10
  • BS-2514 - SolderConn Self-Soldering #12-1/4" Ring Terminal 16 - 14 AWG - Qty. 10
  • BS-1838 - SolderConn Self-Soldering 5/16"-3/8" Ring Terminal 16 - 14 AWG - Qty. 10
  • BSS-331 - SolderConn Self-Soldering Butt Connector 16 - 14 AWG - Qty. 10
  • CS-2810 - SolderConn Self-Soldering #8-10 Ring Terminal 12 - 10 AWG - Qty. 5
  • CS-3014 - SolderConn Self-Soldering #12-1/4" Ring Terminal 12 - 10 AWG - Qty. 5
  • CS-4038 - SolderConn Self-Soldering 5/16"-3/8" Ring Terminal 12 - 10 AWG - Qty. 5
  • CS-0112 - SolderConn Self-Soldering 7/16" - 1/2" Ring Terminal 12 - 10 AWG - Qty. 5
  • CSS-346 - SolderConn Self-Soldering Butt Connector 12 - 10 AWG - Qty. 10
Brand: Kimball Midwest Approved Vendor
Finish: Electro-Tin Plated
Installation: Self-Soldering
Material: Electrolytic Copper Contacts
Maximum Operating Temperature: 275 °F
Minimum Operating Temperature: -65 °F
Number of Pieces: 110
Regulations: MIL-DTL-23053/4, UL Listed
Style: Insulated
Subcategory: Self-Soldering Terminals
Tensile Strength: 2,200 PSI
Voltage: 600V
Wire Diameter: 22 - 10 AWG


WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
