Flareless Ermeto Fittings

Ermeto Small Hex Unions

Straight Thread O-Ring Hex Head Plugs

Ermeto Male Connectors

Ermeto Sleeves

Straight Thread O-Ring Hex Socket Plugs

Ermeto Nuts

Ermeto Male Branch Tees

Ermeto Small Hex Unions

Designed for hydraulic, instrumentation, and chemical processing applications. Pressure ratings up to 10,000 P.S.I. depending on tube size. Excellent vibration resistance. Temperature range from -65°F to +400°F. Made from Carbon Steel - AISI/SAE 12L14. Compatible with various materials including aluminum and stainless steel. No tube flaring required.

Tube OD	Material	Shape	Maximum Pressure	Package Qty	Item #	Price Want to view pricing for this product? Log In or Create Login Not a Kimball Midwest Customer? Register
3/16"	Carbon Steel	Union	5,000 P.S.I.	2	7305X3	Log in to view price
3/16" Ermeto Small Hex Union Item #: 7305X3 Package Weight: 0.1 lbs View Product Details Log in to Order
1/4"	Carbon Steel	Union	4,500 P.S.I.	2	7305X4	Log in to view price
1/4" Ermeto Small Hex Union Item #: 7305X4 Package Weight: 0.2 lbs View Product Details Log in to Order
5/16"	Carbon Steel	Union	4,500 P.S.I.	2	7305X5	Log in to view price
5/16" Ermeto Small Hex Union Item #: 7305X5 Package Weight: 0.2 lbs View Product Details Log in to Order
3/8"	Carbon Steel	Union	4,000 P.S.I.	2	7305X6	Log in to view price
3/8" Ermeto Small Hex Union Item #: 7305X6 Package Weight: 0.3 lbs View Product Details Log in to Order
1/2"	Carbon Steel	Union	4,000 P.S.I.	2	7305X8	Log in to view price
1/2" Ermeto Small Hex Union Item #: 7305X8 Package Weight: 0.5 lbs View Product Details Log in to Order
5/8"	Carbon Steel	Union	3,000 P.S.I.	1	7305X10	Log in to view price
5/8" Ermeto Small Hex Union Item #: 7305X10 Package Weight: 0.5 lbs View Product Details Log in to Order
3/4"	Carbon Steel	Union	3,000 P.S.I.	1	7305X12	Log in to view price
3/4" Ermeto Small Hex Union Item #: 7305X12 Package Weight: 0.7 lbs View Product Details Log in to Order

Straight Thread O-Ring Hex Head Plugs

Designed for hydraulic, instrumentation, and chemical processing. High pressure applications up to 10,000 P.S.I. Excellent vibration resistance. Temperature range of -65°F to +400°F. Made from Carbon Steel - AISI/SAE 12L14. Compatible with aluminum, copper, steel, stainless steel, monel, titanium, and extra heavy wall tubing. No tube flaring required.

Port Size	Material	Shape	Head Style	Maximum Pressure	Package Qty	Item #	Price Want to view pricing for this product? Log In or Create Login Not a Kimball Midwest Customer? Register
1/8"	Carbon Steel	Plug	Hex Head	5,000 P.S.I.	10	7237X2	Log in to view price
1/8" Straight Thread O-Ring Hex Head Plug Item #: 7237X2 Package Weight: 0.2 lbs View Product Details Log in to Order
3/16"	Carbon Steel	Plug	Hex Head	5,000 P.S.I.	10	7237X3	Log in to view price
3/16" Straight Thread O-Ring Hex Head Plug Item #: 7237X3 Package Weight: 0.3 lbs View Product Details Log in to Order
1/4"	Carbon Steel	Plug	Hex Head	4,500 P.S.I.	10	7237X4	Log in to view price
1/4" Straight Thread O-Ring Hex Head Plug Item #: 7237X4 Package Weight: 0.3 lbs View Product Details Log in to Order
5/16"	Carbon Steel	Plug	Hex Head	4,500 P.S.I.	10	7237X5	Log in to view price
5/16" Straight Thread O-Ring Hex Head Plug Item #: 7237X5 Package Weight: 0.5 lbs View Product Details Log in to Order
3/8"	Carbon Steel	Plug	Hex Head	4,000 P.S.I.	10	7237X6	Log in to view price
3/8" Straight Thread O-Ring Hex Head Plug Item #: 7237X6 Package Weight: 0.6 lbs View Product Details Log in to Order
1/2"	Carbon Steel	Plug	Hex Head	4,000 P.S.I.	5	7237X8	Log in to view price
1/2" Straight Thread O-Ring Hex Head Plug Item #: 7237X8 Package Weight: 0.6 lbs View Product Details Log in to Order
5/8"	Carbon Steel	Plug	Hex Head	3,000 P.S.I.	5	7237X10	Log in to view price
5/8" Straight Thread O-Ring Hex Head Plug Item #: 7237X10 Package Weight: 0.8 lbs View Product Details Log in to Order
3/4"	Carbon Steel	Plug	Hex Head	3,000 P.S.I.	2	7237X12	Log in to view price
3/4" Straight Thread O-Ring Hex Head Plug Item #: 7237X12 Package Weight: 0.6 lbs View Product Details Log in to Order
1"	Carbon Steel	Plug	Hex Head	2,500 P.S.I.	2	7237X16	Log in to view price
1" Straight Thread O-Ring Hex Head Plug Item #: 7237X16 Package Weight: 0.8 lbs View Product Details Log in to Order
1-1/4"	Carbon Steel	Plug	Hex Head	2,000 P.S.I.	1	7237X20	Log in to view price
1-1/4" Straight Thread O-Ring Hex Head Plug Item #: 7237X20 Package Weight: 0.7 lbs View Product Details Log in to Order
1-1/2"	Carbon Steel	Plug	Hex Head	1,500 P.S.I.	1	7237X24	Log in to view price
1-1/2" Straight Thread O-Ring Hex Head Plug Item #: 7237X24 Package Weight: 0.9 lbs View Product Details Log in to Order

Ermeto Male Connectors

Tube OD	Male Pipe Size	Material	Shape	Maximum Pressure	Package Qty	Item #	Price Want to view pricing for this product? Log In or Create Login Not a Kimball Midwest Customer? Register
1/4"	1/8"	Carbon Steel	Straight	4,500 P.S.I.	5	7205X4	Log in to view price
1/4" x 1/8" Ermeto Male Connector Item #: 7205X4 Package Weight: 0.3 lbs View Product Details Log in to Order
1/4"	1/4"	Carbon Steel	Straight	4,500 P.S.I.	5	7205X4X4	Log in to view price
1/4" x 1/4" Ermeto Male Connector Item #: 7205X4X4 Package Weight: 0.4 lbs View Product Details Log in to Order
3/8"	1/4"	Carbon Steel	Straight	4,000 P.S.I.	5	7205X6	Log in to view price
3/8" x 1/4" Ermeto Male Connector Item #: 7205X6 Package Weight: 0.5 lbs View Product Details Log in to Order
3/8"	3/8"	Carbon Steel	Straight	4,000 P.S.I.	5	7205X6X6	Log in to view price
3/8" x 3/8" Ermeto Male Connector Item #: 7205X6X6 Package Weight: 0.7 lbs View Product Details Log in to Order
3/8"	1/2"	Carbon Steel	Straight	4,000 P.S.I.	2	7205X6X8	Log in to view price
3/8" x 1/2" Ermeto Male Connector Item #: 7205X6X8 Package Weight: 0.4 lbs View Product Details Log in to Order
1/2"	3/8"	Carbon Steel	Straight	4,000 P.S.I.	2	7205X8	Log in to view price

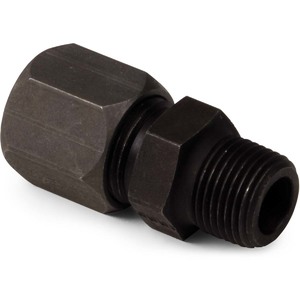

1/2" x 3/8" Ermeto Male Connector Item #: 7205X8 Package Weight: 0.4 lbs View Product Details Log in to Order
1/2"	1/2"	Carbon Steel	Straight	4,000 P.S.I.	2	7205X8X8	Log in to view price
1/2" x 1/2" Ermeto Male Connector Item #: 7205X8X8 Package Weight: 0.5 lbs View Product Details Log in to Order

Ermeto Sleeves

Designed for hydraulic, instrumentation, and chemical processing applications. Pressure ratings up to 10,000 P.S.I. depending on tube size. Excellent vibration resistance. Temperature range from -65°F to +400°F. Made from Carbon Steel - AISI/SAE 12L14. Compatible with aluminum, copper, steel, stainless steel, monel, titanium, and extra heavy wall tubing. No tube flaring required.

Tube OD	Material	Shape	Maximum Pressure	Package Qty	Item #	Price Want to view pricing for this product? Log In or Create Login Not a Kimball Midwest Customer? Register
1/4"	Carbon Steel	Sleeve	4,500 P.S.I.	15	7165X4	Log in to view price
1/4" Ermeto Sleeve Item #: 7165X4 Package Weight: 0.1 lbs View Product Details Log in to Order
5/16"	Carbon Steel	Sleeve	4,500 P.S.I.	15	7165X5	Log in to view price
5/16" Ermeto Sleeve Item #: 7165X5 Package Weight: 0.1 lbs View Product Details Log in to Order
3/8"	Carbon Steel	Sleeve	4,000 P.S.I.	15	7165X6	Log in to view price
3/8" Ermeto Sleeve Item #: 7165X6 Package Weight: 0.1 lbs View Product Details Log in to Order
1/2"	Carbon Steel	Sleeve	4,000 P.S.I.	15	7165X8	Log in to view price
1/2" Ermeto Sleeve Item #: 7165X8 Package Weight: 0.1 lbs View Product Details Log in to Order
5/8"	Carbon Steel	Sleeve	10,000 P.S.I.	5	7165X10	Log in to view price
5/8" Ermeto Sleeve Item #: 7165X10 Package Weight: 0.2 lbs View Product Details Log in to Order
3/4"	Carbon Steel	Sleeve	10,000 P.S.I.	5	7165X12	Log in to view price
3/4" Ermeto Sleeve Item #: 7165X12 Package Weight: 0.2 lbs View Product Details Log in to Order

Straight Thread O-Ring Hex Socket Plugs

Port Size	Material	Shape	Head Style	Maximum Pressure	Package Qty	Item #	Price Want to view pricing for this product? Log In or Create Login Not a Kimball Midwest Customer? Register
1/8"	Carbon Steel	Plug	Socket Head	5,000 P.S.I.	10	7238X2	Log in to view price
1/8" Straight Thread O-Ring Hex Socket Plug Item #: 7238X2 Package Weight: 0.4 lbs View Product Details Log in to Order
3/16"	Carbon Steel	Plug	Socket Head	5,000 P.S.I.	10	7238X3	Log in to view price
3/16" Straight Thread O-Ring Hex Socket Plug Item #: 7238X3 Package Weight: 0.2 lbs View Product Details Log in to Order
1/4"	Carbon Steel	Plug	Socket Head	4,500 P.S.I.	10	7238X4	Log in to view price
1/4" Straight Thread O-Ring Hex Socket Plug Item #: 7238X4 Package Weight: 0.3 lbs View Product Details Log in to Order
5/16"	Carbon Steel	Plug	Socket Head	4,500 P.S.I.	10	7238X5	Log in to view price
5/16" Straight Thread O-Ring Hex Socket Plug Item #: 7238X5 Package Weight: 0.4 lbs View Product Details Log in to Order
3/8"	Carbon Steel	Plug	Socket Head	4,000 P.S.I.	10	7238X6	Log in to view price
3/8" Straight Thread O-Ring Hex Socket Plug Item #: 7238X6 Package Weight: 0.3 lbs View Product Details Log in to Order
1/2"	Carbon Steel	Plug	Socket Head	4,000 P.S.I.	10	7238X8	Log in to view price
1/2" Straight Thread O-Ring Hex Socket Plug Item #: 7238X8 Package Weight: 0.6 lbs View Product Details Log in to Order
5/8"	Carbon Steel	Plug	Socket Head	3,000 P.S.I.	5	7238X10	Log in to view price
5/8" Straight Thread O-Ring Hex Socket Plug Item #: 7238X10 Package Weight: 0.5 lbs View Product Details Log in to Order

Ermeto Nuts

Designed for hydraulic, instrumentation, and chemical processing applications. High pressure capabilities up to 10,000 P.S.I. depending on tube size. Excellent vibration resistance. Temperature range from -65°F to +400°F. Made from Carbon Steel - AISI/SAE 12L14. Compatible with various tubing materials. No tube flaring required. Meets ASA, ASME, SAE, and MS standards.

Tube OD	Material	Shape	Maximum Pressure	Package Qty	Item #	Price Want to view pricing for this product? Log In or Create Login Not a Kimball Midwest Customer? Register
1/4"	Carbon Steel	Nut	4,500 P.S.I.	15	7105X4	Log in to view price
1/4" Ermeto Nut Item #: 7105X4 Package Weight: 0.4 lbs View Product Details Log in to Order
5/16"	Carbon Steel	Nut	4,500 P.S.I.	15	7105X5	Log in to view price
5/16" Ermeto Nut Item #: 7105X5 Package Weight: 0.5 lbs View Product Details Log in to Order
3/8"	Carbon Steel	Nut	4,000 P.S.I.	15	7105X6	Log in to view price
3/8" Ermeto Nut Item #: 7105X6 Package Weight: 0.6 lbs View Product Details Log in to Order
1/2"	Carbon Steel	Nut	4,000 P.S.I.	15	7105X8	Log in to view price
1/2" Ermeto Nut Item #: 7105X8 Package Weight: 1.4 lbs View Product Details Log in to Order
5/8"	Carbon Steel	Nut	10,000 P.S.I.	5	7105X10	Log in to view price
5/8" Ermeto Nut Item #: 7105X10 Package Weight: 0.6 lbs View Product Details Log in to Order
3/4"	Carbon Steel	Nut	10,000 P.S.I.	5	7105X12	Log in to view price
3/4" Ermeto Nut Item #: 7105X12 Package Weight: 0.8 lbs View Product Details Log in to Order

Ermeto Male Branch Tees

Tube OD	Male Pipe Size	Material	Shape	Maximum Pressure	Package Qty	Item #	Price Want to view pricing for this product? Log In or Create Login Not a Kimball Midwest Customer? Register
3/8"	1/4"	Carbon Steel	Branch Tee	4,000 P.S.I.	1	7605X6	Log in to view price
3/8" Ermeto Male Branch Tee Item #: 7605X6 Package Weight: 0.2 lbs View Product Details Log in to Order
