DIN Steel Fittings
Flareless Sleeves
Used in applications to adapt connections made to DIN to male SAE 37° JIC flare. Sealing methods include 3-piece flareless bite type or 60° cone, or 37° flare. Fair vibration resistance. Made of Carbon Steel - SAE 12L14 with bodies and sleeves plated in Zinc with yellow dichromate finish; nuts have Phosphate coating. Adapts metric hose assemblies to 37° SAE.
| Tube OD | Material | Shape | Package Qty | Item # |
Price
Want to view pricing for this product?
Log In or Create Login Not a Kimball Midwest Customer? Register |
|---|---|---|---|---|---|
| 6 mm | Carbon Steel | Sleeve | 10 | 7165X6MM | Log in to view price |
|
|
|||||
| 8 mm | Carbon Steel | Sleeve | 10 | 7165X8MM | Log in to view price |
|
|
|||||
| 10 mm | Carbon Steel | Sleeve | 10 | 7165X10MM | Log in to view price |
|
|
|||||
| 12 mm | Carbon Steel | Sleeve | 10 | 7165X12MM | Log in to view price |
|
|
|||||
| 14 mm | Carbon Steel | Sleeve | 10 | 7165X14MM | Log in to view price |
|
|
|||||
| 15 mm | Carbon Steel | Sleeve | 10 | 7165X15MM | Log in to view price |
|
|
|||||
| 16 mm | Carbon Steel | Sleeve | 10 | 7165X16MM | Log in to view price |
|
|
|||||
| 18 mm | Carbon Steel | Sleeve | 10 | 7165X18MM | Log in to view price |
|
|
|||||
| 20 mm | Carbon Steel | Sleeve | 10 | 7165X20MM | Log in to view price |
|
|
|||||
| 22 mm | Carbon Steel | Sleeve | 10 | 7165X22MM | Log in to view price |
|
|
|||||
| 25 mm | Carbon Steel | Sleeve | 10 | 7165X25MM | Log in to view price |
|
|
|||||
| 28 mm | Carbon Steel | Sleeve | 5 | 7165X28MM | Log in to view price |
|
|
|||||
DIN (Light) Flareless Nuts
Used in applications to adapt connections made to DIN to male SAE 37° JIC flare. Sealing methods include 3-piece flareless bite type or 60° cone, or 37° flare. Fair vibration resistance. Made of Carbon Steel - SAE 12L14 with bodies and sleeves plated in Zinc with yellow dichromate finish; nuts have Phosphate coating. Adapts metric hose assemblies to 37° SAE.
| Tube OD | Thread Size | Material | Shape | Package Qty | Item # |
Price
Want to view pricing for this product?
Log In or Create Login Not a Kimball Midwest Customer? Register |
|---|---|---|---|---|---|---|
| 6 mm | M12 x 1.5 | Carbon Steel | Nut | 10 | ML7105X6 | Log in to view price |
|
Item Number: ML7105X6
Package Weight: 0.2 lbs
|
||||||
| 8 mm | M14 x 1.5 | Carbon Steel | Nut | 10 | ML7105X8 | Log in to view price |
|
Item Number: ML7105X8
Package Weight: 0.3 lbs
|
||||||
| 10 mm | M16 x 1.5 | Carbon Steel | Nut | 10 | ML7105X10 | Log in to view price |
|
Item Number: ML7105X10
Package Weight: 0.4 lbs
|
||||||
| 12 mm | M18 x 1.5 | Carbon Steel | Nut | 10 | ML7105X12 | Log in to view price |
|
Item Number: ML7105X12
Package Weight: 0.6 lbs
|
||||||
| 15 mm | M22 x 1.5 | Carbon Steel | Nut | 10 | ML7105X15 | Log in to view price |
|
Item Number: ML7105X15
Package Weight: 1 lbs
|
||||||
| 18 mm | M26 x 1.5 | Carbon Steel | Nut | 5 | ML7105X18 | Log in to view price |
|
Item Number: ML7105X18
Package Weight: 0.7 lbs
|
||||||
| 22 mm | M30 x 2.0 | Carbon Steel | Nut | 5 | ML7105X22 | Log in to view price |
|
Item Number: ML7105X22
Package Weight: 0.9 lbs
|
||||||
| 28 mm | M36 x 2.0 | Carbon Steel | Nut | 5 | ML7105X28 | Log in to view price |
|
Item Number: ML7105X28
Package Weight: 1.3 lbs
|
||||||
DIN (Heavy) Flareless Nuts
Used in applications to adapt connections made to DIN to male SAE 37° JIC flare. Sealing methods include 3-piece flareless bite type or 60° cone, or 37° flare. Fair vibration resistance. Made of Carbon Steel - SAE 12L14 with bodies and sleeves plated in Zinc with yellow dichromate finish; nuts have Phosphate coating. Adapts metric hose assemblies to 37° SAE.
| Tube OD | Thread Size | Material | Shape | Package Qty | Item # |
Price
Want to view pricing for this product?
Log In or Create Login Not a Kimball Midwest Customer? Register |
|---|---|---|---|---|---|---|
| 6 mm | M14 x 1.5 | Carbon Steel | Nut | 10 | MH7105X6 | Log in to view price |
|
Item Number: MH7105X6
Package Weight: 0.4 lbs
|
||||||
| 8 mm | M16 x 1.5 | Carbon Steel | Nut | 10 | MH7105X8 | Log in to view price |
|
Item Number: MH7105X8
Package Weight: 0.5 lbs
|
||||||
| 10 mm | M18 x 1.5 | Carbon Steel | Nut | 10 | MH7105X10 | Log in to view price |
|
Item Number: MH7105X10
Package Weight: 1.1 lbs
|
||||||
| 12 mm | M20 x 1.5 | Carbon Steel | Nut | 10 | MH7105X12 | Log in to view price |
|
Item Number: MH7105X12
Package Weight: 1.2 lbs
|
||||||
| 14 mm | M22 x 1.5 | Carbon Steel | Nut | 10 | MH7105X14 | Log in to view price |
|
Item Number: MH7105X14
Package Weight: 1.2 lbs
|
||||||
| 16 mm | M24 x 1.5 | Carbon Steel | Nut | 10 | MH7105X16 | Log in to view price |
|
Item Number: MH7105X16
Package Weight: 1.7 lbs
|
||||||
| 20 mm | M30 x 2.0 | Carbon Steel | Nut | 5 | MH7105X20 | Log in to view price |
|
Item Number: MH7105X20
Package Weight: 1.1 lbs
|
||||||
| 25 mm | M36 x 2.0 | Carbon Steel | Nut | 5 | MH7105X25 | Log in to view price |
|
Item Number: MH7105X25
Package Weight: 2.3 lbs
|
||||||
| 30 mm | M42 x 2 | Carbon Steel | Nut | 5 | MH7105X30 | Log in to view price |
|
Item Number: MH7105X30
Package Weight: 2.4 lbs
|
||||||

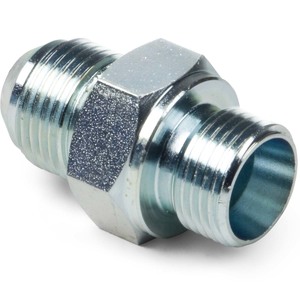

Male SAE JIC 37° to DIN (Light) Adapters
Used to adapt connections from DIN to male SAE 37° JIC flare. Sealing methods include 3-piece flareless bite type or 60° cone, or 37° flare. Fair vibration resistance. Made from Carbon Steel - SAE 12L14 with Zinc and yellow dichromate finish, and Phosphate coating on nuts. Converts metric hose assemblies to 37° SAE.
| Tube OD | Thread Size | Material | Shape | Package Qty | Item # |
Price
Want to view pricing for this product?
Log In or Create Login Not a Kimball Midwest Customer? Register |
|---|---|---|---|---|---|---|
| 1/4" | M12 x 1.5 | Carbon Steel | Adapter | 1 | MC5206X4X6 | Log in to view price |
|
Item Number: MC5206X4X6
Package Weight: 0.1 lbs
|
||||||
| 3/8" | M14 x 1.5 | Carbon Steel | Adapter | 1 | MC5206X6X8 | Log in to view price |
|
Item Number: MC5206X6X8
Package Weight: 0.1 lbs
|
||||||
| 1/2" | M16 x 1.5 | Carbon Steel | Adapter | 1 | MC5206X810 | Log in to view price |
|
Item Number: MC5206X810
Package Weight: 0.1 lbs
|
||||||
| 1/2" | M18 x 1.5 | Carbon Steel | Adapter | 1 | MC5206X812 | Log in to view price |
|
Item Number: MC5206X812
Package Weight: 0.1 lbs
|
||||||
| 5/8" | M22 x 1.5 | Carbon Steel | Adapter | 1 | MC52061015 | Log in to view price |
|
Item Number: MC52061015
Package Weight: 0.2 lbs
|
||||||
| 3/4" | M26 x 1.5 | Carbon Steel | Adapter | 1 | MC52061218 | Log in to view price |
|
Item Number: MC52061218
Package Weight: 0.3 lbs
|
||||||
Male SAE JIC 37° to DIN (Heavy) Adapters
Used to adapt connections from DIN to male SAE 37° JIC flare. Features a 3-piece flareless bite type or 60° cone, or 37° flare sealing method. Fair vibration resistance. Made from Carbon Steel - SAE 12L14 with Zinc and yellow dichromate finish, plus phosphate-coated nuts. Converts metric hose assemblies to 37° SAE for standard fittings.
| Tube OD | Thread Size | Material | Shape | Package Qty | Item # |
Price
Want to view pricing for this product?
Log In or Create Login Not a Kimball Midwest Customer? Register |
|---|---|---|---|---|---|---|
| 1/4" | M12 x 1.5 | Carbon Steel | Adapter | 1 | MC5207X4X6 | Log in to view price |
|
Item Number: MC5207X4X6
Package Weight: 0.1 lbs
|
||||||
| 3/8" | M14 x 1.5 | Carbon Steel | Adapter | 1 | MC5207X6X8 | Log in to view price |
|
Item Number: MC5207X6X8
Package Weight: 0.1 lbs
|
||||||
| 3/8" | M16 x 1.5 | Carbon Steel | Adapter | 1 | MC5207X610 | Log in to view price |
|
Item Number: MC5207X610
Package Weight: 0.1 lbs
|
||||||
| 3/8" | M18 x 1.5 | Carbon Steel | Adapter | 1 | MC5207X612 | Log in to view price |
|
Item Number: MC5207X612
Package Weight: 0.1 lbs
|
||||||
| 1/2" | M18 x 1.5 | Carbon Steel | Adapter | 1 | MC5207X812 | Log in to view price |
|
Item Number: MC5207X812
Package Weight: 0.1 lbs
|
||||||
| 5/8" | M22 x 1.5 | Carbon Steel | Adapter | 1 | MC52071015 | Log in to view price |
|
Item Number: MC52071015
Package Weight: 0.2 lbs
|
||||||
| 3/4" | M26 x 1.5 | Carbon Steel | Adapter | 1 | MC52071218 | Log in to view price |
|
Item Number: MC52071218
Package Weight: 0.3 lbs
|
||||||
Male DIN to Female SAE JIC 37° Swivel Adapters
Used to adapt connections from DIN to male SAE 37° JIC flare. Features a 3-piece flareless bite type or 60° cone, or 37° flare sealing method. Fair vibration resistance. Made from Carbon Steel - SAE 12L14 with Zinc and yellow dichromate finish, plus phosphate-coated nuts. Converts metric hose assemblies to 37° SAE for standard fittings.
Tube OD: 3/8"
| Thread Size | Material | Shape | Package Qty | Item # |
Price
Want to view pricing for this product?
Log In or Create Login Not a Kimball Midwest Customer? Register |
|---|---|---|---|---|---|
| M14 x 1.5 | Carbon Steel | Adapter | 1 | MC5216X146 | Log in to view price |
|
Item Number: MC5216X146
Package Weight: 0.2 lbs
|
|||||
| M16 x 1.5 | Carbon Steel | Adapter | 1 | MC5216X166 | Log in to view price |
|
Item Number: MC5216X166
Package Weight: 0.1 lbs
|
|||||
| M18 x 1.5 | Carbon Steel | Adapter | 1 | MC5216X186 | Log in to view price |
|
Item Number: MC5216X186
Package Weight: 0.1 lbs
|
|||||
| M20 x 1.5 | Carbon Steel | Adapter | 1 | MC5216X206 | Log in to view price |
|
Item Number: MC5216X206
Package Weight: 0.1 lbs
|
|||||
| M22 x 1.5 | Carbon Steel | Adapter | 1 | MC5216X226 | Log in to view price |
|
Item Number: MC5216X226
Package Weight: 0.5 lbs
|
|||||
Tube OD: 1/2"
| Thread Size | Material | Shape | Package Qty | Item # |
Price
Want to view pricing for this product?
Log In or Create Login Not a Kimball Midwest Customer? Register |
|---|---|---|---|---|---|
| M16 x 1.5 | Carbon Steel | Adapter | 1 | MC5216X168 | Log in to view price |
|
Item Number: MC5216X168
Package Weight: 0.1 lbs
|
|||||
| M18 x 1.5 | Carbon Steel | Adapter | 1 | MC5216X188 | Log in to view price |
|
Item Number: MC5216X188
Package Weight: 0.1 lbs
|
|||||
| M20 x 1.5 | Carbon Steel | Adapter | 1 | MC5216X208 | Log in to view price |
|
Item Number: MC5216X208
Package Weight: 0.2 lbs
|
|||||
| M24 x 1.5 | Carbon Steel | Adapter | 1 | MC5216X228 | Log in to view price |
|
Item Number: MC5216X228
Package Weight: 0.6 lbs
|
|||||
Female Din (Light) to Male SAE JIC 37° 90° Elbows
Used to adapt connections from DIN to male SAE 37° JIC flare. Sealing methods include 3-piece flareless bite type or 60° cone, or 37° flare. Fair vibration resistance. Made from Carbon Steel - SAE 12L14 with Zinc and yellow dichromate finish, and Phosphate coating on nuts. Converts metric hose assemblies to 37° SAE.
| Tube OD | Thread Size | Material | Shape | Package Qty | Item # |
Price
Want to view pricing for this product?
Log In or Create Login Not a Kimball Midwest Customer? Register |
|---|---|---|---|---|---|---|
| 1/4" | M12 x 1.5 | Carbon Steel | 90° Elbow | 1 | ML7190X4X6 | Log in to view price |
|
Item Number: ML7190X4X6
Package Weight: 0.3 lbs
|
||||||
| 3/8" | M14 x 1.5 | Carbon Steel | 90° Elbow | 1 | ML7190X6X8 | Log in to view price |
|
Item Number: ML7190X6X8
Package Weight: 0.3 lbs
|
||||||
| 3/8" | M16 x 1.5 | Carbon Steel | 90° Elbow | 1 | ML7190X610 | Log in to view price |
|
Item Number: ML7190X610
Package Weight: 0.5 lbs
|
||||||
| 1/2" | M18 x 1.5 | Carbon Steel | 90° Elbow | 1 | ML7190X812 | Log in to view price |
|
Item Number: ML7190X812
Package Weight: 0.6 lbs
|
||||||
| 3/4" | M26 x 1.5 | Carbon Steel | 90° Elbow | 1 | ML71901218 | Log in to view price |
|
Item Number: ML71901218
Package Weight: 0.5 lbs
|
||||||
| 1" | M30 x 2.0 | Carbon Steel | 90° Elbow | 1 | ML71901622 | Log in to view price |
|
Item Number: ML71901622
Package Weight: 0.6 lbs
|
||||||
Female DIN (Heavy) to Male SAE JIC 37° 90° Elbows
Used to adapt connections from DIN to male SAE 37° JIC flare. Features a 3-piece flareless bite type or 60° cone, or 37° flare sealing method. Fair vibration resistance. Made from Carbon Steel - SAE 12L14 with Zinc and yellow dichromate finish, plus phosphate-coated nuts. Converts metric hose assemblies to 37° SAE for standard fittings.
| Tube OD | Thread Size | Material | Shape | Package Qty | Item # |
Price
Want to view pricing for this product?
Log In or Create Login Not a Kimball Midwest Customer? Register |
|---|---|---|---|---|---|---|
| 1/4" | M14 x 1.5 | Carbon Steel | 90° Elbow | 1 | MH7190X4X6 | Log in to view price |
|
Item Number: MH7190X4X6
Package Weight: 0.1 lbs
|
||||||
| 3/8" | M16 x 1.5 | Carbon Steel | 90° Elbow | 1 | MH7190X6X8 | Log in to view price |
|
Item Number: MH7190X6X8
Package Weight: 0.1 lbs
|
||||||
| 3/8" | M18 x 1.5 | Carbon Steel | 90° Elbow | 1 | MH7190X610 | Log in to view price |
|
Item Number: MH7190X610
Package Weight: 0.2 lbs
|
||||||
| 1/2" | M20 x 1.5 | Carbon Steel | 90° Elbow | 1 | MH7190X812 | Log in to view price |
|
Item Number: MH7190X812
Package Weight: 0.3 lbs
|
||||||
| 3/4" | M30 x 2.0 | Carbon Steel | 90° Elbow | 1 | MH71901220 | Log in to view price |
|
Item Number: MH71901220
Package Weight: 0.8 lbs
|
||||||
| 1" | M36 x 2.0 | Carbon Steel | 90° Elbow | 1 | MH71901625 | Log in to view price |
|
Item Number: MH71901625
Package Weight: 1.3 lbs
|
||||||
DIN Couplers
Used to adapt connections from DIN to male SAE 37° JIC flare. Sealing methods include 3-piece flareless bite type or 60° cone, or 37° flare. Fair vibration resistance. Made from Carbon Steel - SAE 12L14 with Zinc and yellow dichromate finish. Provides an adapter for metric hose assemblies to 37° SAE, enabling standard hose and end fittings.
| Tube OD | Thread Size | Material | Shape | Package Qty | Item # |
Price
Want to view pricing for this product?
Log In or Create Login Not a Kimball Midwest Customer? Register |
|---|---|---|---|---|---|---|
| 12 mm | M12 x 1.5 | Carbon Steel | Coupler | 1 | MC3309X12 | Log in to view price |
|
|
||||||
| 14 mm | M14 x 1.5 | Carbon Steel | Coupler | 1 | MC3309X14 | Log in to view price |
|
|
||||||
| 16 mm | M16 x 1.5 | Carbon Steel | Coupler | 1 | MC3309X16 | Log in to view price |
|
|
||||||
| 18 mm | M18 x 1.5 | Carbon Steel | Coupler | 1 | MC3309X18 | Log in to view price |
|
|
||||||
| 20 mm | M20 x 1.5 | Carbon Steel | Coupler | 1 | MC3309X20 | Log in to view price |
|
|
||||||
Top
Price
Want to view pricing for this product?
Log In or Create Login
Not a Kimball Midwest Customer?
Register
Log In or Create Login
Not a Kimball Midwest Customer?
Register
Pkg Qty: 10
Price
Want to view pricing for this product?
Log In or Create Login
Not a Kimball Midwest Customer?
Register
Log In or Create Login
Not a Kimball Midwest Customer?
Register
Pkg Qty: 10
Price
Want to view pricing for this product?
Log In or Create Login
Not a Kimball Midwest Customer?
Register
Log In or Create Login
Not a Kimball Midwest Customer?
Register
Pkg Qty: 10
Price
Want to view pricing for this product?
Log In or Create Login
Not a Kimball Midwest Customer?
Register
Log In or Create Login
Not a Kimball Midwest Customer?
Register
Pkg Qty: 10
Price
Want to view pricing for this product?
Log In or Create Login
Not a Kimball Midwest Customer?
Register
Log In or Create Login
Not a Kimball Midwest Customer?
Register
Pkg Qty: 10
Price
Want to view pricing for this product?
Log In or Create Login
Not a Kimball Midwest Customer?
Register
Log In or Create Login
Not a Kimball Midwest Customer?
Register
Pkg Qty: 10
Price
Want to view pricing for this product?
Log In or Create Login
Not a Kimball Midwest Customer?
Register
Log In or Create Login
Not a Kimball Midwest Customer?
Register
Pkg Qty: 10
Price
Want to view pricing for this product?
Log In or Create Login
Not a Kimball Midwest Customer?
Register
Log In or Create Login
Not a Kimball Midwest Customer?
Register
Pkg Qty: 10
Price
Want to view pricing for this product?
Log In or Create Login
Not a Kimball Midwest Customer?
Register
Log In or Create Login
Not a Kimball Midwest Customer?
Register
Pkg Qty: 10
Price
Want to view pricing for this product?
Log In or Create Login
Not a Kimball Midwest Customer?
Register
Log In or Create Login
Not a Kimball Midwest Customer?
Register
Pkg Qty: 5
Price
Want to view pricing for this product?
Log In or Create Login
Not a Kimball Midwest Customer?
Register
Log In or Create Login
Not a Kimball Midwest Customer?
Register
Pkg Qty: 5
Price
Want to view pricing for this product?
Log In or Create Login
Not a Kimball Midwest Customer?
Register
Log In or Create Login
Not a Kimball Midwest Customer?
Register
Pkg Qty: 10
Price
Want to view pricing for this product?
Log In or Create Login
Not a Kimball Midwest Customer?
Register
Log In or Create Login
Not a Kimball Midwest Customer?
Register
Pkg Qty: 10
Price
Want to view pricing for this product?
Log In or Create Login
Not a Kimball Midwest Customer?
Register
Log In or Create Login
Not a Kimball Midwest Customer?
Register
Pkg Qty: 1
Price
Want to view pricing for this product?
Log In or Create Login
Not a Kimball Midwest Customer?
Register
Log In or Create Login
Not a Kimball Midwest Customer?
Register
Pkg Qty: 1
Price
Want to view pricing for this product?
Log In or Create Login
Not a Kimball Midwest Customer?
Register
Log In or Create Login
Not a Kimball Midwest Customer?
Register
Pkg Qty: 1
Price
Want to view pricing for this product?
Log In or Create Login
Not a Kimball Midwest Customer?
Register
Log In or Create Login
Not a Kimball Midwest Customer?
Register
Pkg Qty: 1
Price
Want to view pricing for this product?
Log In or Create Login
Not a Kimball Midwest Customer?
Register
Log In or Create Login
Not a Kimball Midwest Customer?
Register
Pkg Qty: 1
Price
Want to view pricing for this product?
Log In or Create Login
Not a Kimball Midwest Customer?
Register
Log In or Create Login
Not a Kimball Midwest Customer?
Register
Pkg Qty: 1
Price
Want to view pricing for this product?
Log In or Create Login
Not a Kimball Midwest Customer?
Register
Log In or Create Login
Not a Kimball Midwest Customer?
Register
Pkg Qty: 1
Price
Want to view pricing for this product?
Log In or Create Login
Not a Kimball Midwest Customer?
Register
Log In or Create Login
Not a Kimball Midwest Customer?
Register
Pkg Qty: 1
Price
Want to view pricing for this product?
Log In or Create Login
Not a Kimball Midwest Customer?
Register
Log In or Create Login
Not a Kimball Midwest Customer?
Register
Pkg Qty: 1
Price
Want to view pricing for this product?
Log In or Create Login
Not a Kimball Midwest Customer?
Register
Log In or Create Login
Not a Kimball Midwest Customer?
Register
Pkg Qty: 1
Price
Want to view pricing for this product?
Log In or Create Login
Not a Kimball Midwest Customer?
Register
Log In or Create Login
Not a Kimball Midwest Customer?
Register
Pkg Qty: 1
Price
Want to view pricing for this product?
Log In or Create Login
Not a Kimball Midwest Customer?
Register
Log In or Create Login
Not a Kimball Midwest Customer?
Register
Pkg Qty: 1
Price
Want to view pricing for this product?
Log In or Create Login
Not a Kimball Midwest Customer?
Register
Log In or Create Login
Not a Kimball Midwest Customer?
Register
Pkg Qty: 1
Price
Want to view pricing for this product?
Log In or Create Login
Not a Kimball Midwest Customer?
Register
Log In or Create Login
Not a Kimball Midwest Customer?
Register
Pkg Qty: 1
Price
Want to view pricing for this product?
Log In or Create Login
Not a Kimball Midwest Customer?
Register
Log In or Create Login
Not a Kimball Midwest Customer?
Register
Pkg Qty: 1
Price
Want to view pricing for this product?
Log In or Create Login
Not a Kimball Midwest Customer?
Register
Log In or Create Login
Not a Kimball Midwest Customer?
Register
Pkg Qty: 1
Price
Want to view pricing for this product?
Log In or Create Login
Not a Kimball Midwest Customer?
Register
Log In or Create Login
Not a Kimball Midwest Customer?
Register
Pkg Qty: 1
Digital Catalog
View Catalog
