Color-Coded Non-Insulated Terminal Assortment

Color-Coded Non-Insulated Terminal Assortment

Price

Want to view pricing for this product?
Log In or Create Login

Not a Kimball Midwest Customer?
Register

Package Quantity: 1

Package Weight: 10.2 lbs

Item: 402301

  • COLOR-CODED BANDS - Allows at a glance identification of wire gauge size.
    Crimp on the band for proper crimp nest positioning and an optimal crimp.
  • BUILT-IN INSPECTION WINDOW - Provides a visual check that the ideal connection has been made. 45° inspection barrel (on ring and spade terminals) ensures the wire is seated properly and is being correctly crimped to the terminal.
  • LONG NECK RING & SPADE TERMINAL DESIGN - Provides a larger, more reliable sealing area and allows the ring terminals to be easily stacked.
  • BRAZED SEAM BARRELS - Seam will not open or loosen, helping to prevent wire pullout.
  • ELECTRO TIN-PLATING - Provides increased corrosion resistance.

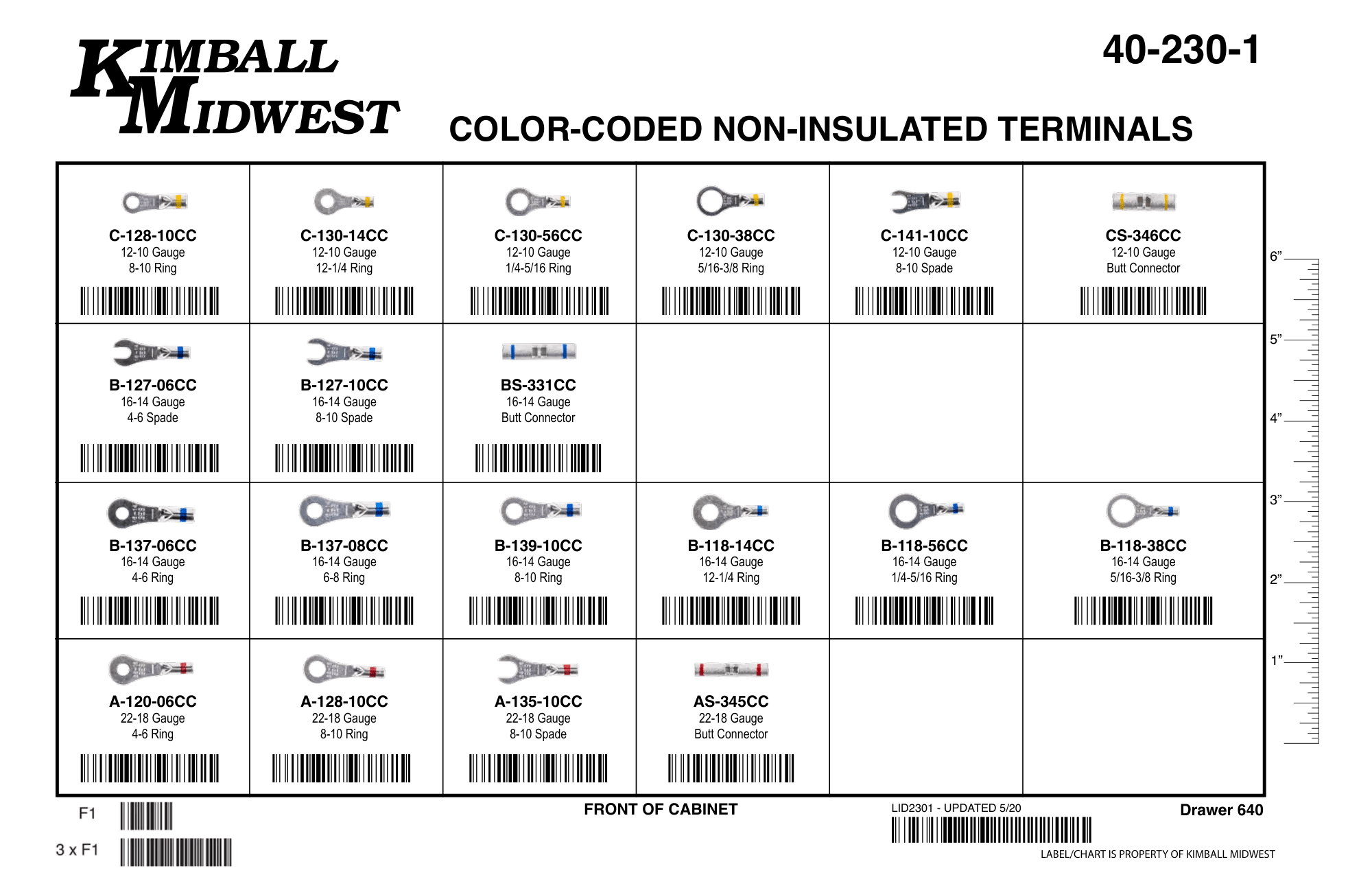

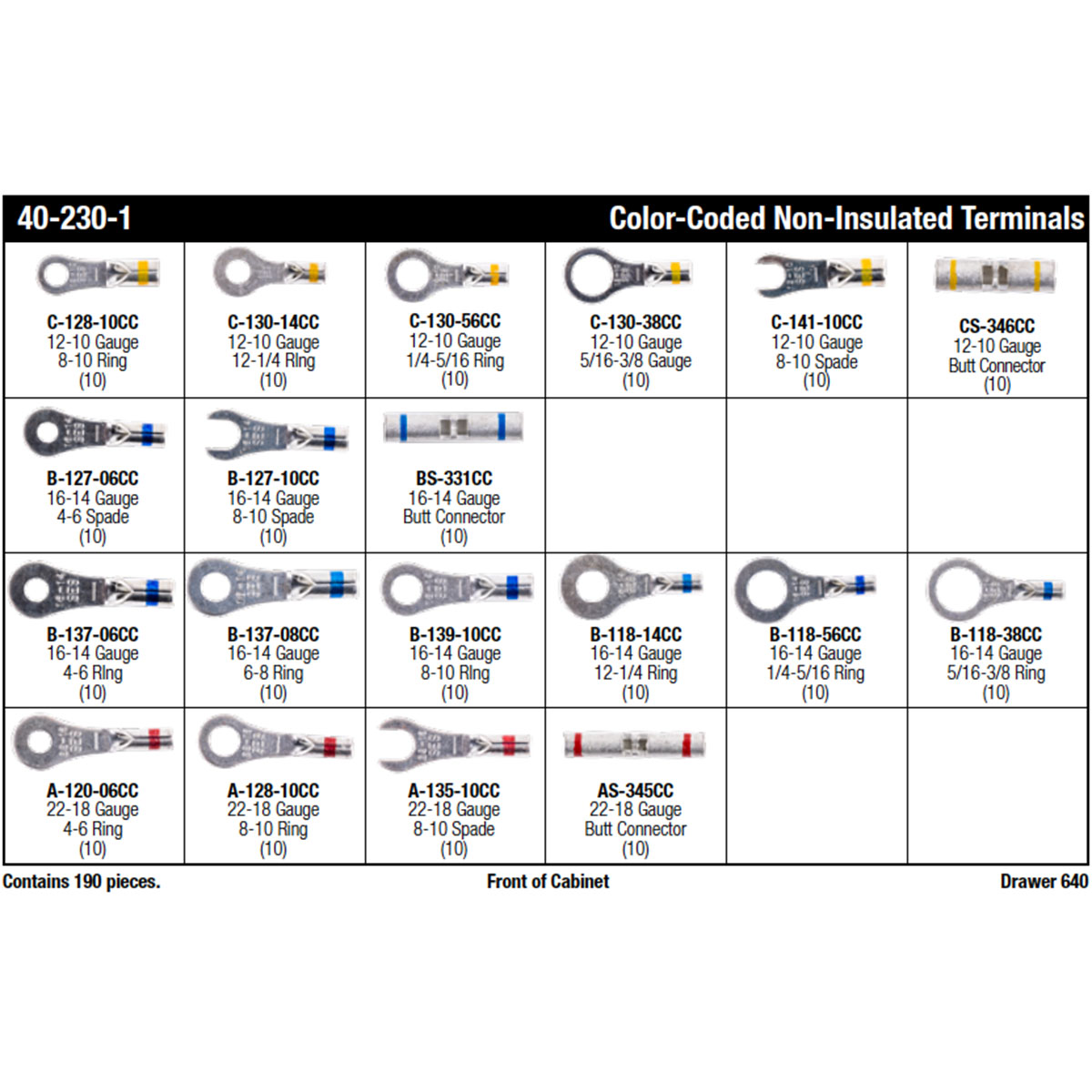

Kit Contains:

  • A-120-06CC - Color-Coded Non-Insulated #4 - 6 Ring Terminal 22-18 AWG - Qty. 10
  • A-128-10CC - Color-Coded Non-Insulated #8 - 10 Ring Terminal 22-18 AWG - Qty. 10
  • A-135-10CC - Color-Coded Non-Insulated #8 - 10 Spade Terminal 22-18 AWG - Qty. 10
  • AS-345CC - Color-Coded Non-Insulated Butt Connector 22-18 AWG - Qty. 10
  • B-137-06CC - Color-Coded Non-Insulated #4 - 6 Ring Terminal 16-14 AWG - Qty. 10
  • B-137-08CC - Color-Coded Non-Insulated #6 - 8 Ring Terminal 16-14 AWG - Qty. 10
  • B-139-10CC - Color-Coded Non-Insulated #8 - 10 Ring Terminal 16-14 AWG - Qty. 10
  • B-118-14CC - Color-Coded Non-Insulated #12 - 1/4" Ring Terminal 16-14 AWG - Qty. 10
  • B-118-56CC - Color-Coded Non-Insulated 1/4" - 5/16" Ring Terminal 16-14 AWG - Qty. 10
  • B-118-38CC - Color-Coded Non-Insulated 5/16" - 3/8" Ring Terminal 16-14 AWG - Qty. 10
  • B-127-06CC - Color-Coded Non-Insulated #4 - 6 Fork Terminal 16-14 AWG - Qty. 10
  • B-127-10CC - Color-Coded Non-Insulated #8 - 10 Fork Terminal 16-14 AWG - Qty. 10
  • BS-331CC - Color-Coded Non-Insulated Butt Connector 16-14 AWG - Qty. 10
  • C-128-10CC - Color-Coded Non-Insulated #8 - 10 Ring Terminal 12-10 AWG - Qty. 10
  • C-130-14CC - Color-Coded Non-Insulated #12 - 1/4" Ring Terminal 12-10 AWG - Qty. 10
  • C-130-56CC - Color-Coded Non-Insulated 1/4" - 5/16" Ring Terminal 12-10 AWG - Qty. 10
  • C-130-38CC - Color-Coded Non-Insulated 5/16" - 3/8" Ring Terminal 12-10 AWG - Qty. 10
  • C-141-10CC - Color-Coded Non-Insulated #8 - 10 Fork Terminal 12-10 AWG - Qty. 10
  • CS-346CC - Color-Coded Non-Insulated Butt Connector 12-10 AWG - Qty. 10
Brand: Kimball Midwest
Finish: Electro-Tin Plated
Installation: Crimp
Material: Electrolytic Copper Contacts
Number of Pieces: 190
Subcategory: Non-Insulated Terminals
Voltage: 600V
Wire Diameter: 22 - 10 AWG
  • COLOR-CODED BANDS - Allows at a glance identification of wire gauge size.
    Crimp on the band for proper crimp nest positioning and an optimal crimp.
  • BUILT-IN INSPECTION WINDOW - Provides a visual check that the ideal connection has been made. 45° inspection barrel (on ring and spade terminals) ensures the wire is seated properly and is being correctly crimped to the terminal.
  • LONG NECK RING & SPADE TERMINAL DESIGN - Provides a larger, more reliable sealing area and allows the ring terminals to be easily stacked.
  • BRAZED SEAM BARRELS - Seam will not open or loosen, helping to prevent wire pullout.
  • ELECTRO TIN-PLATING - Provides increased corrosion resistance.

Kit Contains:

  • A-120-06CC - Color-Coded Non-Insulated #4 - 6 Ring Terminal 22-18 AWG - Qty. 10
  • A-128-10CC - Color-Coded Non-Insulated #8 - 10 Ring Terminal 22-18 AWG - Qty. 10
  • A-135-10CC - Color-Coded Non-Insulated #8 - 10 Spade Terminal 22-18 AWG - Qty. 10
  • AS-345CC - Color-Coded Non-Insulated Butt Connector 22-18 AWG - Qty. 10
  • B-137-06CC - Color-Coded Non-Insulated #4 - 6 Ring Terminal 16-14 AWG - Qty. 10
  • B-137-08CC - Color-Coded Non-Insulated #6 - 8 Ring Terminal 16-14 AWG - Qty. 10
  • B-139-10CC - Color-Coded Non-Insulated #8 - 10 Ring Terminal 16-14 AWG - Qty. 10
  • B-118-14CC - Color-Coded Non-Insulated #12 - 1/4" Ring Terminal 16-14 AWG - Qty. 10
  • B-118-56CC - Color-Coded Non-Insulated 1/4" - 5/16" Ring Terminal 16-14 AWG - Qty. 10
  • B-118-38CC - Color-Coded Non-Insulated 5/16" - 3/8" Ring Terminal 16-14 AWG - Qty. 10
  • B-127-06CC - Color-Coded Non-Insulated #4 - 6 Fork Terminal 16-14 AWG - Qty. 10
  • B-127-10CC - Color-Coded Non-Insulated #8 - 10 Fork Terminal 16-14 AWG - Qty. 10
  • BS-331CC - Color-Coded Non-Insulated Butt Connector 16-14 AWG - Qty. 10
  • C-128-10CC - Color-Coded Non-Insulated #8 - 10 Ring Terminal 12-10 AWG - Qty. 10
  • C-130-14CC - Color-Coded Non-Insulated #12 - 1/4" Ring Terminal 12-10 AWG - Qty. 10
  • C-130-56CC - Color-Coded Non-Insulated 1/4" - 5/16" Ring Terminal 12-10 AWG - Qty. 10
  • C-130-38CC - Color-Coded Non-Insulated 5/16" - 3/8" Ring Terminal 12-10 AWG - Qty. 10
  • C-141-10CC - Color-Coded Non-Insulated #8 - 10 Fork Terminal 12-10 AWG - Qty. 10
  • CS-346CC - Color-Coded Non-Insulated Butt Connector 12-10 AWG - Qty. 10
Brand: Kimball Midwest
Finish: Electro-Tin Plated
Installation: Crimp
Material: Electrolytic Copper Contacts
Number of Pieces: 190
Subcategory: Non-Insulated Terminals
Voltage: 600V
Wire Diameter: 22 - 10 AWG
