24 - 20 & 22 - 18 AWG Nylon Terminal Assortment

24 - 20 & 22 - 18 AWG Nylon Terminal Assortment

Price
Want to view pricing for this product?
Log In or Create Login

Not a Kimball Midwest Customer?
Register
Item Number: 40223
Package Weight: 8.8 lbs
See all product variations

Product Details

  • Outstanding durability, temperature resistance and dielectric strength from Enduralon™ Nylon Insulation.
  • Wires insert smoothly without hang-up into special funnel shaped barrels for fast and easy installation.
  • Insulock™ grip sleeves built into the terminal barrel allows a second crimp that locks the barrel onto the wire insulation to prevent wire pull-out failures.
  • Widest operating temperature range: -40°F to 250°F continuous; up to 350°F intermittent.
  • 600 volt rating on ring, hook and spade terminals.

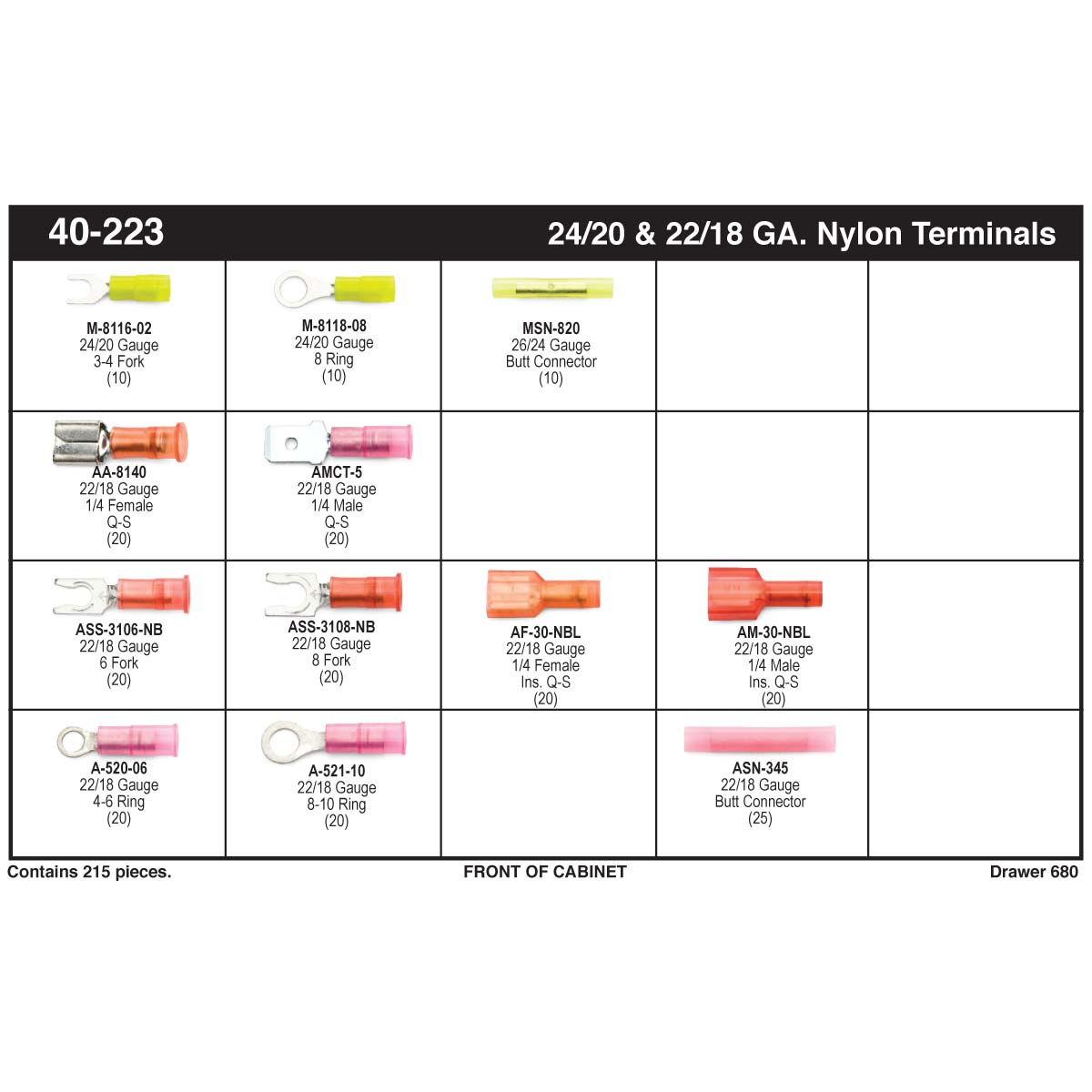

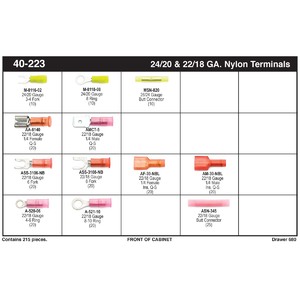

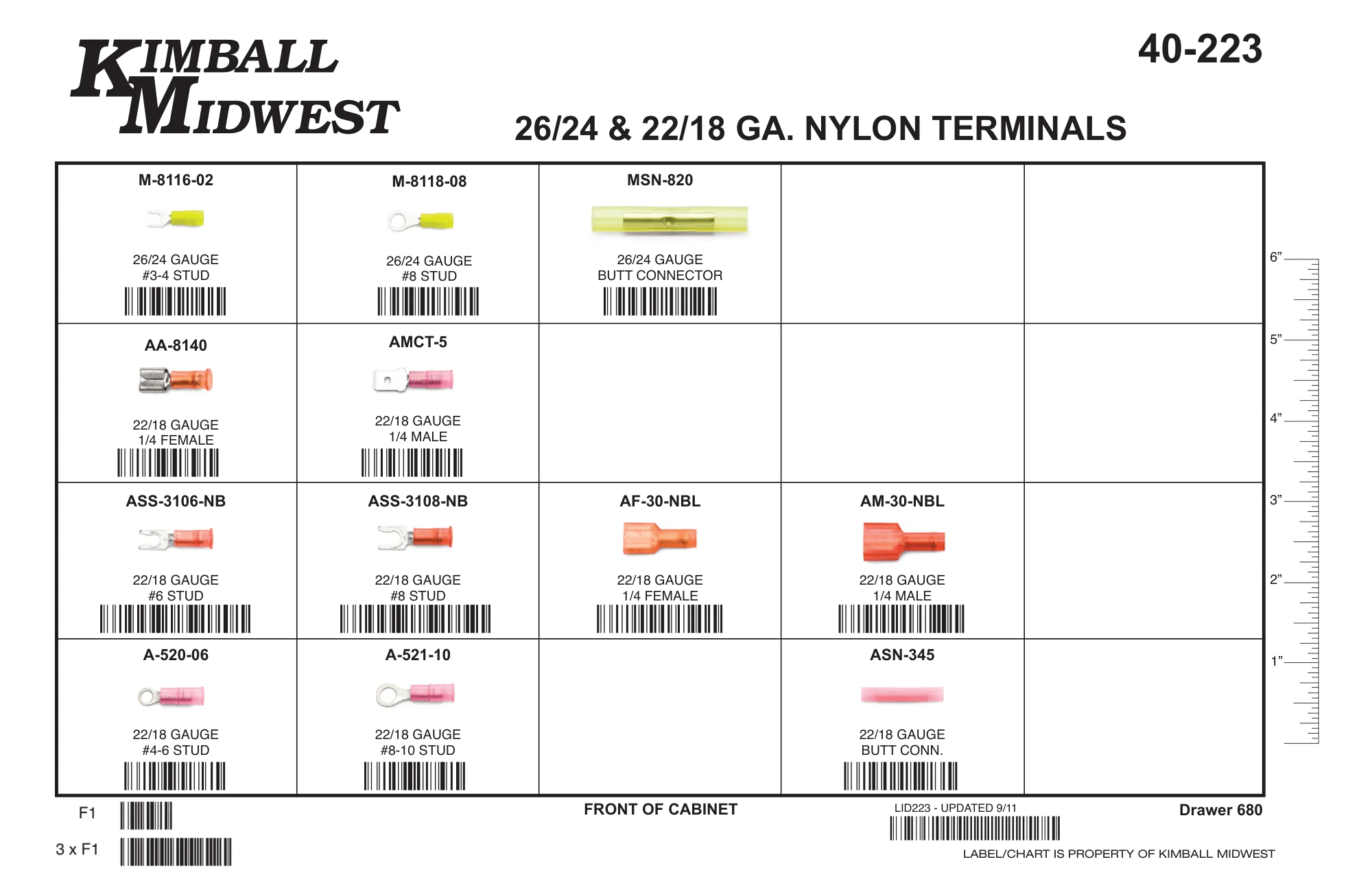

Kit Contains:

  • A-520-06 - Enduralon™ #4-6 Ring Terminal 22 - 18 AWG - Qty. 20
  • A-521-10 - Enduralon™ #8-10 Ring Terminal 22 - 18 AWG - Qty. 20
  • ASS-3106-NB - Enduralon™ #6 Fork Terminal 22 - 18 AWG - Qty. 20
  • ASS-3108-NB - Enduralon™ #8 Fork Terminal 22 - 18 AWG - Qty. 20
  • AF-30-NBL - Enduralon™ 1/4" Insulated Female Quick Slide Terminal 22 - 18 AWG - Qty. 20
  • AM-30-NBL - Enduralon™ 1/4" Insulated Male Quick Slide Terminal 22 - 18 AWG - Qty. 20
  • AA-8140 - Enduralon™ 1/4" Female Quick Slide Terminal 22 - 18 AWG - Qty. 20
  • AMCT-5 - Enduralon™ 1/4" Male Quick Slide Terminal 22 - 18 AWG - Qty. 20
  • ASN-345 - Enduralon™ Butt Connector 22 - 18 AWG - Qty. 25
  • M-8116-02 - Enduralon™ #3-4 Fork Terminal 22 - 18 AWG - Qty. 10
  • M-8118-08 - Enduralon™ #8 Ring Terminal 22 - 18 AWG - Qty. 10
  • MSN-820 - Enduralon™ Butt Connector 22 - 18 AWG - Qty. 10
Product Documents
P65 Warning

Product Specification

Brand:  Kimball Midwest Approved Vendor
Color:  Red
Finish:  Electro-Tin Plated
Installation:  Crimp
Material:  Electrolytic Copper Contacts
Maximum Operating Temperature:  250 °F
Minimum Operating Temperature:  -40 °F
Number of Pieces:  215
Storage Type:  20-Compartment Drawer
Style:  Insulated
Subcategory:  Terminal Assortments
Voltage:  600V
Wire Diameter:  24 - 18 AWG
